DNA DDC001 110mm High Double Din Cradle Frame

110mm Double DIN cradle fitting frame

Used to surround a double DIN head unit so it can be mounted and locked into place within the vehicles dash.
For use where a fascia panel is designed to accept a 110mm high cradle.

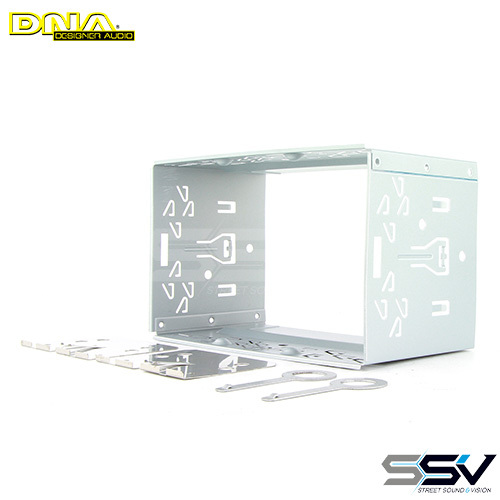

Supplied with:
Double DIN fitting frame: 180mm across x 110mm high x 100mm deep

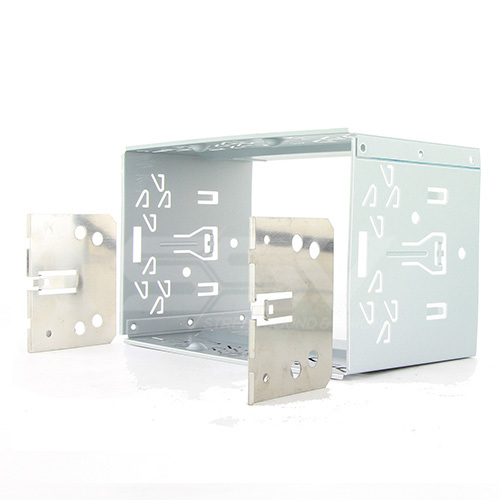

Left and right plates that screw to the head unit and then lock into the double DIN fitting frame
Keys for easy removal of the head unit from the double DIN fitting frame
4 x ISO screws for fastening the left and right plates to the sides of the head unit

Cradle Size:
Internal Dimensions: 180mm W x 110mm H
External Dimensions: 181mm W x 111 mm H
Mounting Cage Dimensions: 185mm W x 115mm H
Packaging: White gift box with DNA sticker


Suits:
Kenwood
