PACK 1 - 4x4 Dual Cab Floor Pan + Doors Pack Stage1 To Suit 70 Series LC, Ford Ranger, Hilux, Triton, Narava, D-Max, Amarok, Rodeo, Colorado

Sound deadening kits suitable for 79 Series, Hilux, Ranger, Triton, Narava, D-Max, Amarok, Rodeo, Colorado - universal fit for a dual cab ute.
(If you have an F250, Dodge Ram or Chevy Silverado purchase the XL pack).

STANDARD PACKS

•  Pack 1 and 2 come with Waterproof Carpet underlay - a peel and stick closed cell foam that you stick on the Sound Deadener.
•  Pack 1 insulates everything but the roof, Pack 2 adds on the roof insulation.

The 4x4 Dual Cab Floor Pan + Doors Pack includes:
Pack 1 (approx 25kg)

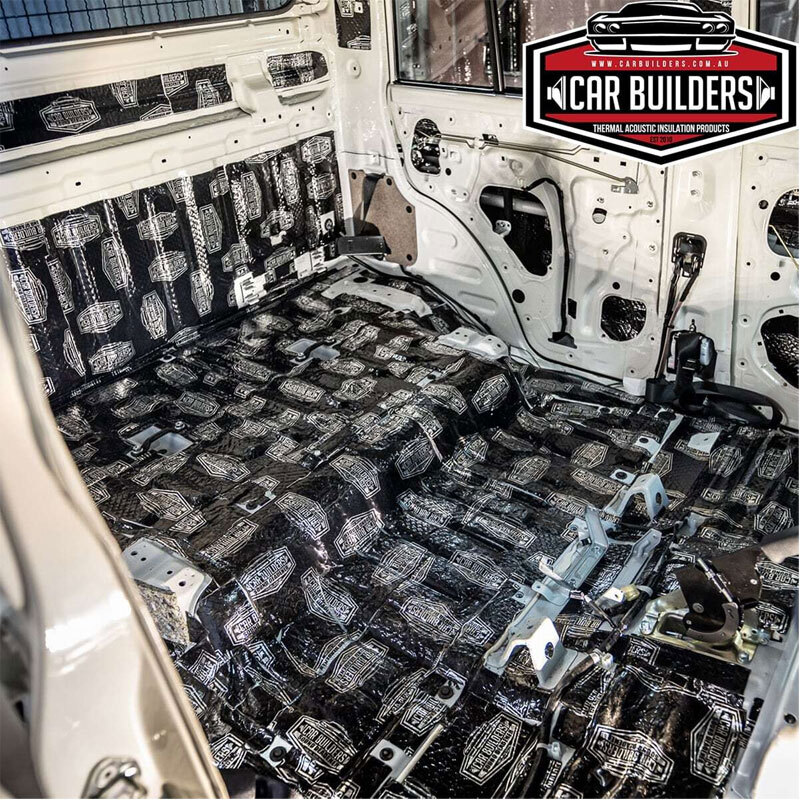

3 Boxes (5.4sq/m) of Stage 1 Sound Deadener -  Install on your floor pan, rear firewall & door skin. Cover from above your pedals, across the floor pan up the rear firewall to below the rear window. Remove door trim and apply to outer door skin.
2 Boxes (3.6sq/m) Waterproof Carpet Underlay - Light weight, closed cell, peel and stick foam. At 10mm the waterproof underlay will replicate your factory underlay, reduce heat transfer and will cover your floor pan.

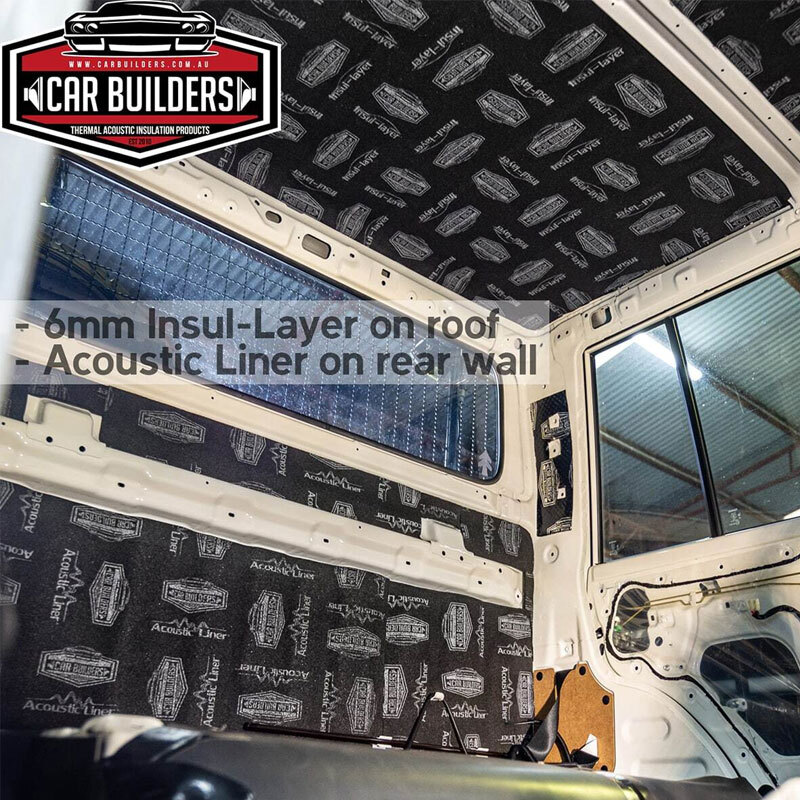

1 Box (1.7sq/m) Acoustic Liner - Peel & stick, 12mm thick flexible foam to cover the rear firewall.
1 x Install kit - Includes 1 x application roller, 1 x utility knife, 1 x roll of foil tape
Bonus - Car Builders stubby holder and bottle opener!

The 4x4 Dual Cab Floor Pan, Roof + Doors Pack includes:
Pack 2 (approx 32kg)
4 Boxes (7.2sq/m) of Stage 1 Sound Deadener -  Apply to your floor pan, rear firewall, roof and door skins.
2 Boxes (3.6sq/m) Waterproof Carpet Underlay - Light weight, closed cell, peel and stick foam. At 10mm the waterproof underlay will replicate your factory underlay, reduce heat transfer and will cover your floor pan.
1 Box (1.7sq/m) Acoustic Liner - Peel & stick, 12mm thick flexible foam to cover the rear firewall.

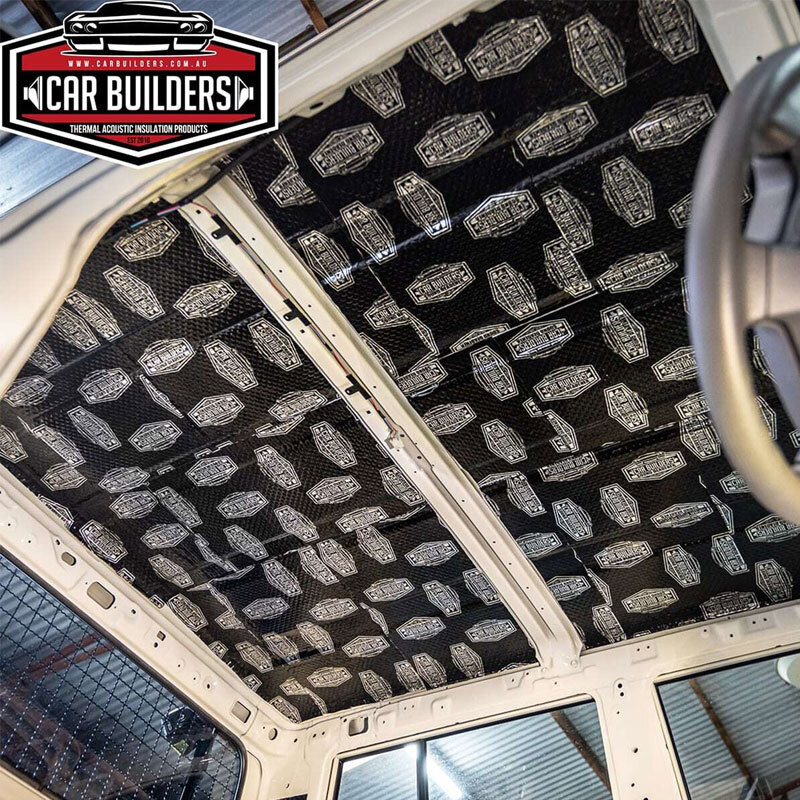

2 Sheets (2sq/m) Insul-Layer- peel and stick foam creating a sound and heat barrier for your roof skin.
1 x Install kit - Includes 1 x application roller, 1 x utility knife, 1 x roll of foil tape
Bonus - Car Builders stubby holder and bottle opener!

PREMIUM PACKS

Please note that pre-cut floors will dispatch within 3-5 business days.

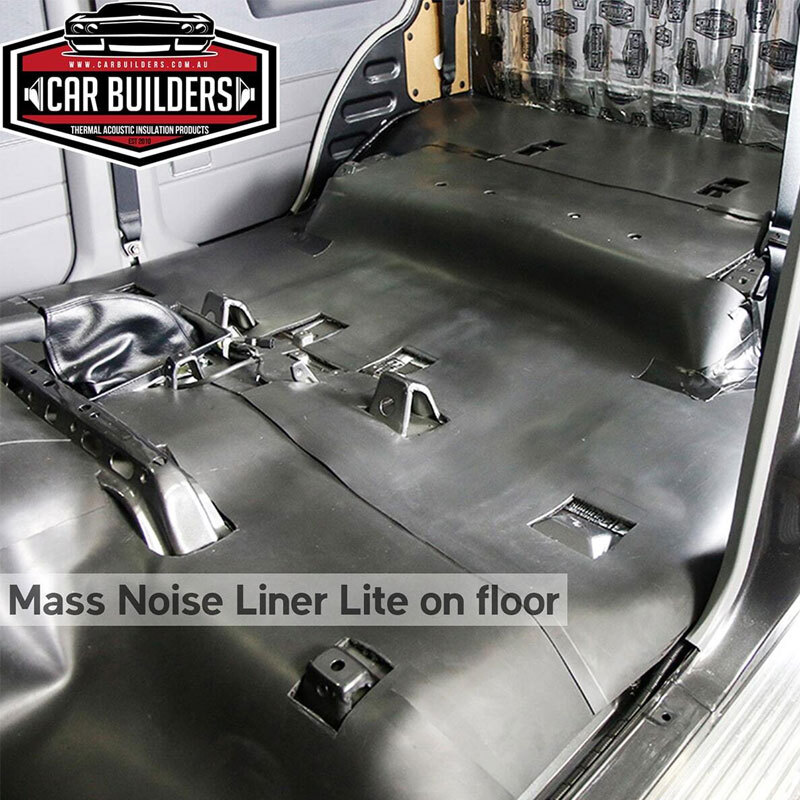

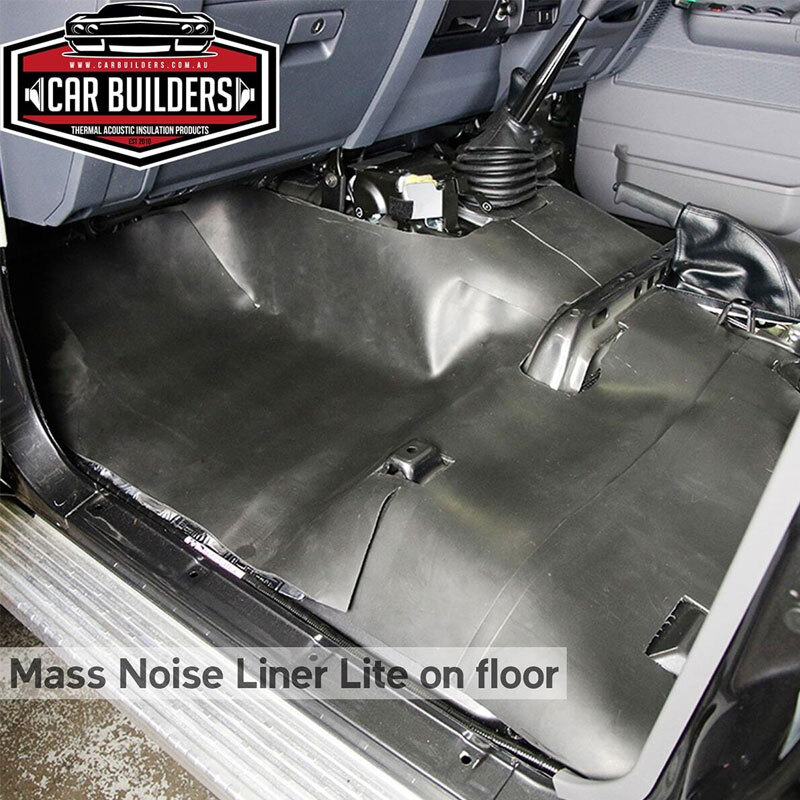

• Pack 3 and 4 come with Mass Noise Liner - a premium non stick underlay, is closed cell foam with a 2mm thick mass loaded vinyl layer on top. This is waterproof as well, and utilising the vinyl layer as a sound blanket it blocks more sound than Waterproof Underlay.
• Pack 3 insulates everything but the roof, Pack 4 adds on the roof insulation.

The 4x4 Dual Cab Floor Pan + Doors Premium Pack includes:
Pack 3 (approx 35kg)
3 Boxes (5.4sq/m) of Stage 1 Sound Deadener -  Install on your floor pan and rear firewall. cover from above your pedals, across the floor pan up the rear firewall to below the rear window.
2.5 Sheets (3.8sq/m) Mass Noise Liner - Stage 2 Sound barrier to cover firewall and floor pan
1 Box (1.7sq/m) Acoustic Liner - Peel & stick, 12mm thick flexible foam to cover the rear firewall.
1 x Install kit - Includes 1 x application roller, 1 x utility knife, 1 x roll of foil tape
Bonus - Car Builders stubby holder and bottle opener!

The 4x4 Dual Cab Floor Pan, Roof + Doors Premium Pack includes:
Pack 4 (approx 40kg)
4 Boxes (7.2sq/m) of Stage 1 Sound Deadener -  Apply to your floor pan, rear firewall, roof and door skins.
2.5 Sheets (3.8sq/m) Mass Noise Liner - Stage 2 Premium carpet underlay works as a sound barrier to cover your entire floor pan from front to rear firewall.
1 Box (1.7sq/m) Acoustic Liner - Peel & Stick closed cell foam to cover rear firewall after apply the Stage 1 Sound Deadener
2 Sheets (2sq/m) Insul-Layer- peel and stick foam creating sound a heat barrier for your roof skin.
1 x Install kit - Includes 1 x application roller, 1 x utility knife, 1 x roll of foil tape
Bonus - Car Builders stubby holder and bottle opener!

PRE-CUT (optional)
We offer pre-cut floors and rear walls in our single and dual cab packs for the 79 series. This is only an option for premium packs 3 and 4. This includes:
- Pre-cut Mass Noise Liner (premium carpet underlay)
- Pre-cut Acoustic Liner foam for the rear wall
Please note: The Stage 1 Sound Deadener will not come pre-cut as they are small sheets that do not need to be perfectly placed. The Mass Noise Liner and Acoustic Liner will not have the exact square meterage listed in the above packs due to us cutting it out to be a direct fit.

The 4x4 Dual Cab XL Pack - Our premium Pack 4 with extra material to suit larger dual cabs
E.g. Ford F250, Dodge Ram, Chev Silverado:
XL Pack (approx 55kg)
5 Boxes (9sq/m) of Stage 1 Sound Deadener -  Apply to your floor pan, rear firewall, roof and door skins.
3 Sheets (4.5sq/m) Mass Noise Liner - Stage 2 Premium carpet underlay works as a sound barrier to cover your entire floor pan from front to rear firewall.
1 Box (1.7sq/m) Acoustic Liner - Peel & Stick closed cell foam to cover rear firewall after apply the Stage 1 Sound Deadener
3 Sheets (3sq/m) Insul-Layer- peel and stick foam creating sound a heat barrier for your roof skin.
1 x Install kit - Includes 1 x application roller, 1 x utility knife, 1 x roll of foil tape
Bonus - Car Builders stubby holder and bottle opener!
