Features and Functions
-
5-Channel, Class-AB Full Range Amplifier
-
Stable into 4 ohms bridged or 2 ohms stereo load
-
MOSFET power supply
-
RCA and OEM speaker level input
-
Variable Inputs Gain Control
-
Variable FULL / LP / HP Electronic Crossover
-
Variable Bass Boost
Specifications
-
Power @ 4Ω: 4 x 70 + 1 x 250 watts
-
Power @ 2Ω: 4 x 100 + 1 x 400 watts
-
Power @ 4Ω Bridged: 2 x 180 + 1 x 400 (2Ω)
-
THD @ Rated Power < 0.2%
-
Signal to Noise Ratio > 90dB
-
Channel separation > 45dB
-
Frequency Response 10Hz to 30,000Hz ±1dB
-
Input Sensitivity .25v to 5v
-
Dimensions in mm: 182(W) x 52(H) x 351(L) Overall: 182(W) x 52(H) x 381(L)

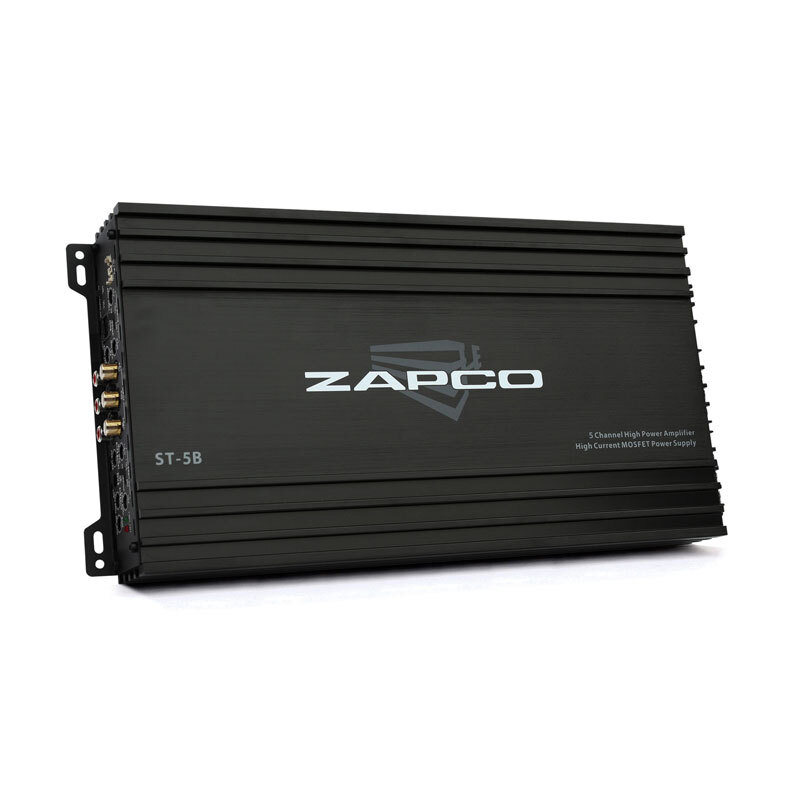

(ST-5B)
