Aerpro 9" Multimedia receiver to suit Toyota hilux 2005-2011 - with swc

Aerpro 9" Multimedia receiver to suit Toyota hilux 2005-2011 - with swc

SKU:AMATO9

$999.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

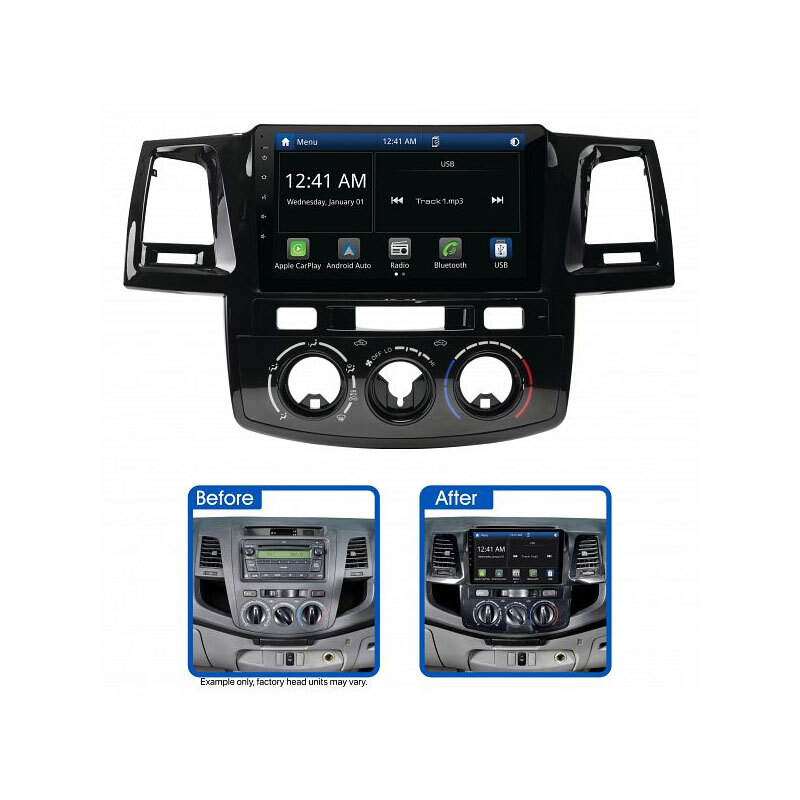

The Aerpro AMATO9 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Hilux (2005-2011) non-amplified vehicles with factory steering wheel controls. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMATO9 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory reverse camera (if equipped).

Important Information:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Suits vehicles with factory steering wheel controls only.
  • Not suitable for factory amplified vehicles.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
  • This head unit is sold as a kit which includes:
    • AM9X Multimedia Receiver
    • Gloss Black Facia Kit
    • Steering Wheel Control Interface Harness
    • Camera Retention Adaptor
    • Stickers for manual HVAC

Video:
Head Unit Feature Video





  • To suit Toyota Hilux (2005-2011) non-amplified vehicles with factory steering wheel controls
  • Includes all the parts required to complete the installation and to retain important vehicle features
  • Apple CarPlay & Android Auto (wireless / wired)
  • Large 9" capacitive touchscreen display
  • Steering wheel control and factory reverse camera retention (if equipped)
  • Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
  • AM / FM Tuner with RDS & presets (18FM/12AM)
  • Rear USB input (1.5A max charging)
  • Dual camera inputs (AHD 720P compatible) & rear A/V input
  • 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
  • 4V/5CH RCA Preout and subwoofer level control





AMATO9 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

  • Kit Inclusions:
    • AM9X Multimedia Receiver
    • Gloss Black Facia Kit
    • Steering Wheel Control Interface Harness
    • Camera Retention Adaptor
    • Stickers for manual HVAC
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes
    • Factory Reverse Camera: Yes (if equipped, model dependant)
    • AUX Input: N/A
    • USB Input: N/A
    • Parking Tones: N/A
    • Factory Amplifier: No
    • Vehicle Menu: N/A
    • Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

  • LCD Display:
    • Size: 9"
    • Resolution: 1024x600
    • Touch Screen: Capacitive (G+G)
  • System Specifications:
    • OS System / CPU: Linux 3.4.5 / SPHE8368U
    • RAM / Flash Memory: 128MB / 256MB
  • DIN Size: 2 DIN Short Body
  • Power Output
    • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
    • MAX Power (4 Ohm): 4CH x 50W
  • Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
  • Device Ports
    • USB 1 (Rear) Playback Formats: CP,AA & Media
    • USB 2 (Rear) Playback Formats: Media
    • USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
    • USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    • Rear A/V Input (RCA Type - 3pcs): Yes
    • Composite Video Outputs: Yes
    • Reverse Camera Input: Yes (720P AHD Compatible)
    • Second Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
  • Bluetooth:
    • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    • Bluetooth Version: V4.2+EDR
    • Microphone: Built-in & External Microphone
    • ID3 Tag/Information (Artist, Album, Song): Yes
    • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
  • Tuner:
    • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
    • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
    • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
    • RDS: Yes
    • FM Antenna Connector Impedance: 50 Ohm
    • FM Tuner Connector: Motorola
  • RCA Preamp Outputs:
    • RCA Preamp Output: 2-Pair (Front / Rear)
    • Subwoofer RCA Output: Yes
    • Subwoofer Level Control: Yes
    • Preamp Voltage (1.2,2,4,5,6): 4V p-p
  • Tone Control:
    • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
    • Loudness: Yes
    • LPF - Frequencies (Sub): Yes
    • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
  • Other Features:
    • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    • OSD Language: English
    • LED Colour (Buttons / Keys): White
  • Accessories:
    • Power Harness: Yes with ISO/3.5mm jack
    • AV-In Cable (RCA with Audio L/R, Video In): Yes
    • Reverse Camera Input (with 12V power supply to the camera): Yes
    • 4.1CH Audio Out Cable: Yes
    • External Microphone: Included

IMPORTANT INFORMATION:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Suits vehicles with factory steering wheel controls only.
  • Not suitable for factory amplified vehicles.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

(AMATO9)
