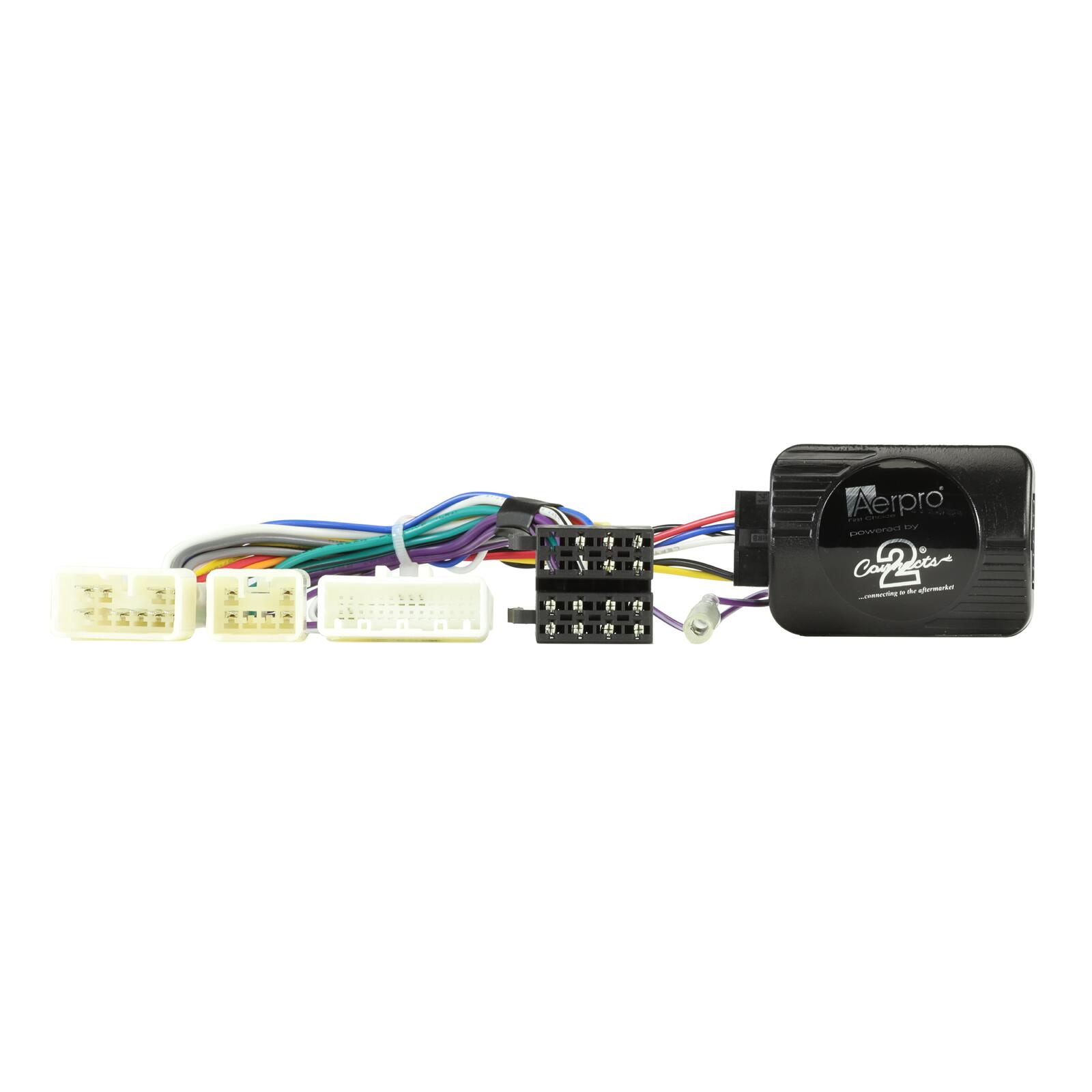

Aerpro CHSU8C Steering Wheel Control Interface to Suit Subaru

The Aerpro CHSU8C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Subaru vehicles, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket head unit is simplified even further when paired with the optional Aerpro APP9 Head Unit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket head unit and the Aerpro Steering Wheel Control Interface. This interface also provides a Reverse Trigger Output.

• Please Note:
  • Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
  • A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
  • Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
  • Not suitable for vehicles with OEM Harmon Kardon Amplified Systems.
  • Does not retain factory camera or AUX in.
  • Dipswitch #1 ON (Up) is configured for vehicles using Toyota codes (default setting): Forester (2012 - 2014), Impreza (2012 - 2014), WRX (2014 - 2015) & XV (2012 - 2014).
  • Dipswitch #1 OFF (Down) is configured for vehicles using Subaru codes: Forester (2015 - 2018), Impreza (2015 - 2016), Outback (2015 - 2018) WRX (2016 - 2018), Outback (2007 - 2014), Levorg (2015 - 2018) & XV (2012 - 2017).

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth head units
• Switchable between Toyota and Subaru steering wheel codes (default Toyota)
• Not suitable for vehicles with OEM Harmon Kardon Amplified Systems
• Provides an output feed for reverse gear
• Fitted with a vehicle specific plug, no cutting of wires required
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
• Requires SWC patch lead to provide compatibility with the aftermarket head unit (sold separately)

Specs:

• INTERFACE TYPE: ANALOGUE
• PATCH LEAD TYPE: C
• PHONE BUTTON COMPATIBILITY: YES
• VOICE ASSISTANT BUTTON SUPPORT: YES
  • If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead.
  • Aftermarket head unit and phone must also support Voice Assistant feature for this feature to work
• OUTPUTS:
  • REVERSE TRIGGER: YES (PURPLE)
  • PARK BRAKE: NO
  • SPEED PULSE: NO
  • ILLUMINATION: NO
  • AMP REMOTE: NO
  • TELEPHONE MUTE: NO
• OTHER RETENTION:
  • OEM AMPLIFIED SYSTEM: NO
• NOTES:
  • Aftermarket head unit must be SWC compatible.
  • SWC patch lead is also required to enable SWC (sold separately).
  • Suitable for listed vehicles that have OEM Navigation head units.
  • Not suitable for vehicles with OEM Harmon Kardon Amplified Systems.
  • Does not retain factory camera or AUX in.
  • Dipswitch ON (Up) is configured for vehicles using Toyota codes (default setting): Forester (2012 - 2014), Impreza (2012 - 2014), WRX (2014 - 2015) & XV (2012 - 2014).
  • Dipswitch OFF (Down) is configured for vehicles using Subaru codes: Forester (2015 - 2018), Impreza (2015 - 2016), Outback (2015 - 2018) WRX (2016 - 2018), Outback (2007 - 2014), Levorg (2015 - 2018) & XV (2012 - 2017).
