Aerpro FP8415K Install Kit

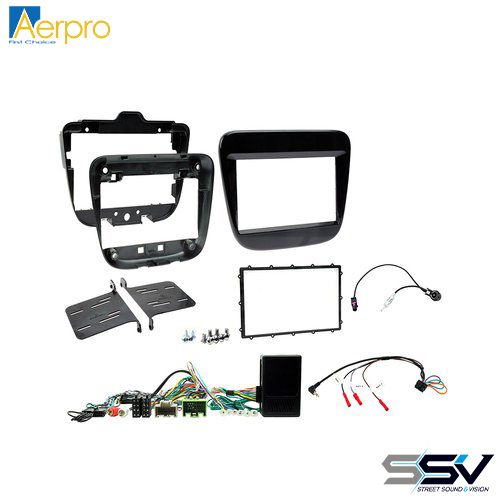

Complete a full aftermarket double din headunit installation in your Holden Equinox EQ LT, LTZ, LTZ-V (2017 on) with MyLink 8" system, from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: Facia kit, mounting brackets, steering wheel control interface, antenna adapter and universal steering wheel control patch lead. To make the installation process even easier, simply add Aerpro APP8 or APP9 aftermarket headunit harness adapters which will connect from the aftermarket headunit directly into the steering wheel control interface harness supplied in this kit.

Specification
APPLICATION: DOUBLE DIN
COLOUR: GLOSS BLACK
INTERNAL DIMENSIONS: 181mm (W) x 104mm (H) - (without trim)
EXTERNAL DIMENSIONS: 235mm TOP / 130mm BASE (W) x 180mm (H)
INCLUSIONS:
FACIA KIT
MOUNTING BRACKETS
STEERING WHEEL CONTROL INTERFACE (CHCV4C)
ANTENNA ADAPTER
UNIVERSAL PATCH LEAD
NOTES:
Factory unit: Mylink 8"
Warning chime speaker built into steering wheel control interface
The included steering wheel control module does not retain the factory display of vehicle comfort settings (to retain these use the infodapter version - Aerpro FP8415KC). These settings need to be programmed prior to removing the factory unit as they will not be accessible. Store factory unit in a safe place, as to change these settings at a later date, the factory unit would need to be plugged back in.
Holden Equinox 2017- EQ
Features
Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
Suitable for double din aftermarket headunit installation
High quality gloss black finish on facia kit to suit the style of the dashboard in the vehicle
Compatible with vehicles that have Mylink 8" OEM factory headunits
Retains steering wheel control functionality including phone button
Also retains warning chimes
CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
Provides output feeds for park brake, speed pulse, reverse gear and illumination
To simplify installation, this kit is compatible with Aerpro APP8 and APP9 aftermarket headunit harness adapters
