Aerpro G179V Reverse Camera to suit 2004-2015 Volkswagen Transporter T5 Single Rear Door Only
SKU:G179V

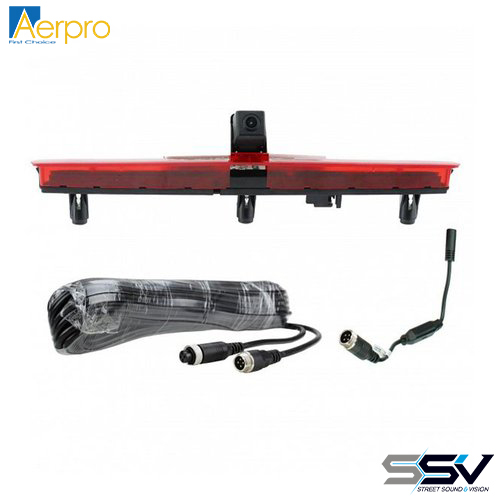

The G179V is a vehicle specific reverse camera built for your Volkswagen Transporter T5 (single rear door model only) Van. The camera simply replaces the high level brake light at the rear of the vehicle to provide a discreet installation solution without the need to drill any additional holes. The wide 170 degree horizontal field of view minimises blindspots at the rear of the vehicle and the CMOS image sensor produces crystal clear images and enhanced performance in low light. The G179V is built tough, it will withstand the harsh environment thanks to its IP68 rating. The G179V is the perfect reverse camera solution for Volkswagen Transporter T5 (single rear door model) Vans.
PLEASE NOTE: This camera uses a 4 PIN connection system
Features:
- Designed to replace the factory tailgate handle providing a discreet and professional rear camera solution
- No additional holes need to be drilled into the vehicle and keeps the original tailgate lock
- High quality image sensor produces clear images and enhanced low light performance
- 170 Degree field of view minimises blind spots at the rear of the vehicle
- IP68 Rating makes it suitable for use in the harsh Australian conditions
- Parking guidelines to assist with reverse parking (guidelines to be removed at time if installation)
- 10M 4 PIN Extension cable length to run between the front and back of the vehicle
- PAL compatible with 4 PIN connection makes it suitable for use with most PAL aftermarket display monitors
Specs:
- VEHICLE COMPATIBILITY: VOLKSWAGEN TRANSPORTER T5 (SINGLE REAR DOOR ONLY) 2004-2015
- CAMERA TYPE: REVERSE
- HOUSING COLOUR: REPLACEMENT HIGH LEVEL TAIL LIGHT (RED/BLACK)
- LENS ANGLE: 170°
- PAL/NTSC: PAL
- PARKING GUIDELINES: SWITCHABLE
- MIRROR IMAGE: NO
- MONITOR CONNECTION TYPE: 4 PIN
- LUX RATING: N/A
- OPERATING VOLTAGE: 12V DC
- IP RATING: IP68
- OPERATING TEMPERATURE: N/A
- INCLUSIONS:
- CAMERA
- CAMERA CONNECTION CABLE
- 10M 4 PIN EXTENSION CABLE
- INSTRUCTIONS
- NOTES:
- Parking guidelines are set to OFF as default, to enable parking guidelines cut the loop on the camera cable at time of installation.
Vehicles known to work with this product:
- Volkswagen Transporter T5 2004-2010
- Volkswagen Transporter T5 2010-2015
(G179V)
