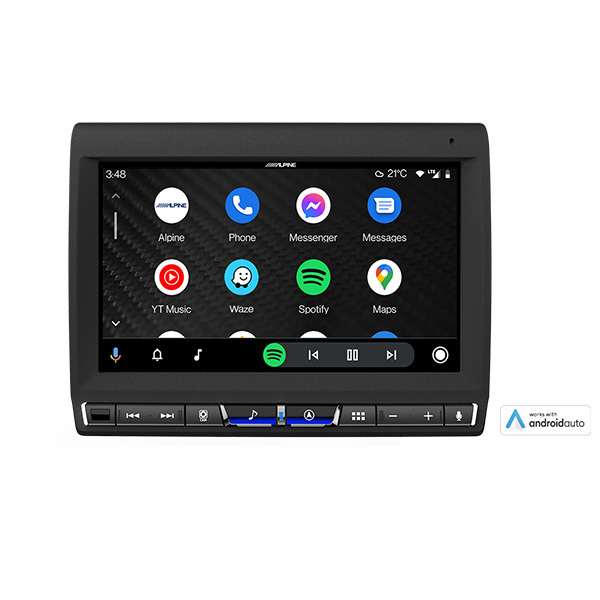

Alpine i905i-LC70 To Suit LandCruiser 70 Series

i905i To Suit LandCruiser 70 Series 9″ Integrated Hi-Res Audio Receiver with Wireless Apple CarPlay / Android Auto (USB) / HDMI / USB / Dual Camera / Bluetooth / Hi-Res Audio Wireless / LDAC / DAB+ suitable for LandCruiser 70 Series

For all 70 Series enthusiasts who demand the ultimate in-car experience, Alpine’s all-new i905i-LC70 has been engineered with cutting-edge design to elevate the in-cabin aesthetic. The high-definition WXGA 9” display acts as a stunning new centrepiece to the interior, integrating seamlessly whilst also showcasing design cues in-line with the 70 Series rugged history. Discover an industry-leading innovation masterpiece, delivering unmatched quality and value for the ultimate 21^st century off-road lifestyle.

Equipped with wireless Apple CarPlay and Android Auto (USB), an endless array of entertainment and smartphone apps are available to use in your dashboard. Get directions with maps and navigation apps, send and receive messages, make calls and listen to music all without a cable in sight.

With TIDAL now built-in, soak in your favourite songs with a new level of fidelity and elevate your music streaming experience in wireless Hi-Res audio like you’ve never heard it before. For those with a large existing library of Hi-Res audio content that is also supported up to 96kHz 24bit.

With a world-first innovation, the i905i-LC70 equipped with a powerful built-in Class-D amplifier to deliver the richness and dynamics of your music for the most superior sound performance.

Moreover, with Alpine’s extensive sound tuning built-in you can apply simple one touch audio adjustments to make your cabin space sound brilliant, or for pro-level users and enthusiasts a host of advanced tuning functions are available.

The i905i-LC70 is the new benchmark for all 70 Series enthusiasts—elevating the interior aesthetic in every way possible, whilst delivering an incredible connectivity and multimedia experience with impeccable audio performance.

Specifications

General

• Power Requirement – 14.4V DC (11-16V allowable)
• Operating Temperature – -20°C to +60°C
• Power Output – 50W x 4
• Maximum Current Consumption – 15A

Audio Output Level

• Preout (Front, Rear): 4V/10k ohms (max.)
• Preout (Subwoofer): 4V/10k ohms (max.)

Weight

• 2.3kg

Screen

• Screen Size: 9 inch Laminated WXGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

FM Tuner

• Tuning Range –   87.5 -105MHz
• Mono Usable Sensitivity –   8.1 dBf (0.7μV/75 ohms)
• 50dB Quieting Sensitivity –   12dBf (1.1μV/75 ohms)
• Alternate Channel Selectivity –  80dB
• Signal-to-Noise Ratio –  65dB
• Stereo Seperation –  35dB

AM Tuner

• Tuning Range –   531-1701 kHz
• Usable Sensitivity –  25.1μV/28 dBf

DAB Tuner

• Tuning Range –   174 – 240 MHz
• Usable Sensitivity –   -100dBm
• Signal-to-Noise Ratio – 90dB

USB (1)

• USB Requirements: USB 2.0
• Max. Power Consumption: 2,400 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32, exFAT
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.005%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB
• Channel Separation (at 1kHz): 90 dB

USB (2)

• USB Class: Charge Only
• Max. Power Consumption: 1,500 mA (CDP Support)

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
• Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

HDMI Section

• Input Format: 720p/480p/VGA
• Output Format: 720p/480p

GPS

• Reception Frequency 1575.42 +/- 1.023 MHz
• Reception Sensitivity (Search) -136dB max.

Wi-Fi

Frequency Ranges

• IEEE 802.11 b/g/n (2.4 GHz)

Channels

• 1 -13 ch (2.4 GHz)

Security Protocols

• WPA3/WPA2-PSK (TKIP, AES)

Dimensions

• Din Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 149.6mm
• Display Size (W x H x D) mm: 268.9 x 178 x 54.7
