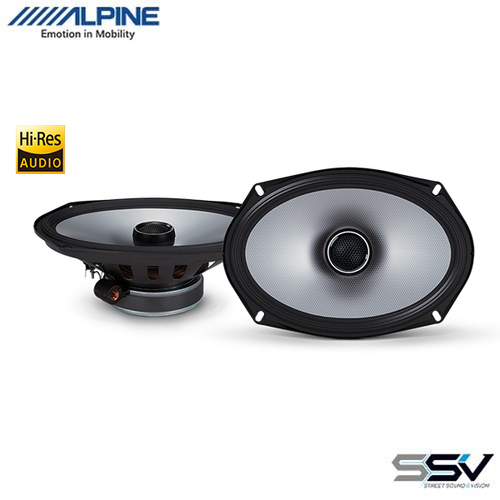

Alpine S2-S69 Coaxial 2-Way 6×9 Inch Speakers

Experience the rich detail and sonic excellence of Alpine’s next-generation S-Series loudspeakers — now featuring Hi-Res Audio for the first time.

The S-Series continues to establish the benchmark in sound quality and value by producing impressively detailed loudspeakers that accurately represent true studio-level Hi-Resolution audio faithful across the entire frequency bandwidth.

Alpine innovation continues with all-new technology and engineering in the construction and materials adopted in the new S-Series.  The exclusive design composite glass fiber hybrid cone is extremely rigid and lightweight, which further unites with Alpine’s patented HAMR surround to achieve increased control and excursion of the woofer diaphragm, resulting in pure, punchy sound and powerful bass at high SPL.

In addition, the 1” soft dome tweeters come alive in the upper harmonics, delivering an incredibly smooth and detailed high frequency response that’s extended right up to 40kHz — so you can hear the finest nuances in your music.

With an extensive range of component and coaxial speakers, the new S-Series is the most impressive and versatile speaker line-up ever, providing system configuration flexibility and installation compatibility into virtually any vehicle type.

Take your in-car sound to the next-level with the new S-Series loudspeakers rivalling performance far beyond their modest price-point.

KTE-S69G Grilles pictured are sold separately.

Features

Woofer

• 6×9″ (160cm x 240cm) Lightweight Glass Fiber Coaxial Speaker
• HAMR (High Amplitude Multi-Roll) Surround
• Large Voice Coil
• Magnet Material: Strontium Ferrite
• Grill sold separately: KTE-S69G

Tweeter

• 1″  Extended-Range Soft Dome Tweeter
• Magnet Material: Ferrite
• Tweeter Grill: Perforated Net

Crossover Network

• Woofer: Copper Air-Coiled Wound Inductor
• Tweeter: High Grade Audio Poly Capacitor

Specifications

Power Handling

• Peak Power: 260 Watts
• RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions

• Frame 237 mm x 161mm
• Cutout Diameter: 242mm x 152mm
• Mounting Depth: 74.5 mm
• Mounting Height: 7.3 mm
• Magnet: 100.0 mm

General

• Frequency Range: 55 Hz – 40 kHz
• Impedance: 4 Ohms (DCR 3.7 ohms)
• Sensitivity: 90 dB SPL (1W @1m)
• Recommended Amplification: up to 85W RMS per channel
