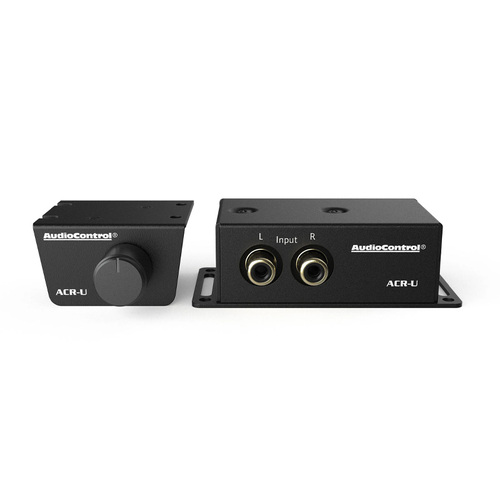

AudioControl ACR-U Universal Remote Level Controller

The ACR-U is a universal remote level control which can be inserted into any line-level signal path. The ACR-U can be surface or custom-mounted to add subwoofer level control, zone level control, total system volume control, and more to your audio system. Installation is simple and no power is required.

Included is a half meter Cat5e cable. Any Cat5e cable up to 300 feet in length may be used. This means the ACR-U Remote can be mounted far from the ACR-U Hub and all RCA connections can remain short, ensuring low noise and excellent signal integrity.

Features

• Precise and tactile remote level control for any application
• Add volume control to line level sources
• Remote can be mounted up to 300 feet from hub

Specifications

Inputs

• Line Level Inputs: 1 (2 channels)

Outputs

• Line Level Outputs: 1 (2 channels)

Performance

• Insertion Loss: 0.017 dB
• Attenuation Range: -97 dB

Weights & dimensions

• Dimensions:
  • Remote: 1.75”W x 2.0”D x 1.0”H
  • Hub (including RCA jacks): 3.2″W x 2.1″D x 1.0″H
• Weight: 2.3oz (65.2g)

In the box:

• ACR-U Remote, ACR-U Hub, 0.5 Meter Cat5e Cable, Quick Start Guide, Warranty
