AudioControl RTA and Multi-Test Tool Kit

Ultimate Pro Audio Test Kit
The DM-RTA Pro Kit includes everything you need for a complete mobile audio measurement solution.
The Complete Test Tool Solution
Setup your aftermarket amplifier, find the correct speaker signals from your audio system and tune your vehicle audio system to the maximum performance are just some of the things you can do with the DM-RTA Pro Kit from AudioControl.

Building from a legacy of trusted professional audio measurement products, the DM-RTA„¢ brings the vital tools you rely on to one indispensable interface.

Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl's DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.
Measure With Accuracy
An excellent entry-level microphone for your DM-RTA and the official replacement calibrated microphone for all models of the SA-305X and the Iasys. Models include the SA-3050, SA-3050A, SA-3051, SA-3052, SA-3052A, SA-3055, A-3056, Iasys and Iasys HT.

This is a back electret measurement microphone with calibrated internal preamp. Maximum SPL is 136 dB. Ships with 20 foot XLR mic cable.

Listen to your vehicles audio system, test speaker acoustic phasing and


Smartphone & Tablet Connectivity
Control, setup and tune your vehicle using the DM-RTA from anywhere in the vehicle with the included BT-24 Bluetooth Module. Once plugged into the DM-RTA interface, it allows full control of your RTA from either Android or iOS devices with a Bluetooth connection.
Accessories Plus

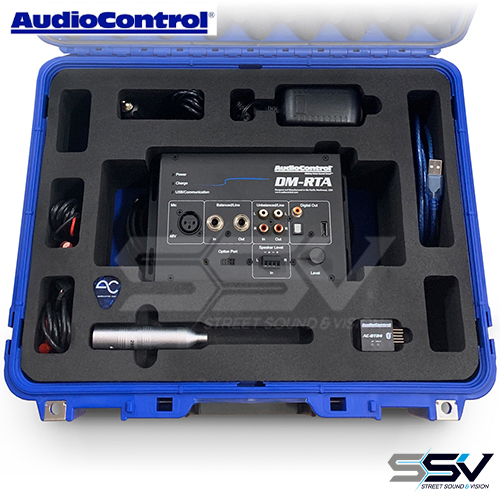

Nestled snuggly in the included fetching blue hard case, you will find

1x DM-RTA
1x AC Power Supply
1x 12V DC Power Supplies
1x AC-BT24 Bluetooth Adaptor
1x USB A to B Cable
1x USB A to A Cable
1x CM-10 Measurement Microphone
1x XLR Microphone Lead
1x RCA Input to Spring-Loaded Test Lead Cable
1x Speaker Level Input to Spring-Loaded Test Lead Cable
DM RTA Application
The DM-RTA isn't just an RTA.
Accessible from the DM-RTA app are five modules,
Including

Test and measure nearly every signal imaginable from acoustical, to line level, and speaker level.

Balanced and unbalanced line level inputs allow the DM-RTA to be inserted into your signal chain to verify optimal signal from source to speakers.

This is the last test tool you'll ever need.
Specifications
DM-RTA
Inputs
1 x Balanced (Input Impedance 3.24kΩ)
1 x Unbalanced (Input Impedance 3.24kΩ)
1 x Microphone (Input Impedance 10kΩ)
1 x Speaker Level (Input Impedance 16.24kΩ)
Max Low Level Input Voltage: 8 Vrms
Max High Level Input Voltage: 40 Vrms

Outputs
1 x Balanced (Output Impedance: 51Ω)
1 x Unbalanced (Output Impedance: 51Ω)
1 x Coax Digital (Output Impedance: 75Ω)
1 x Toslink1 x USB
Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General
Power Supply:
Battery Life: ~5 Hours

Weights & Dimensions
Dimensions: 8W x 4.8D x 2.4H
Weight: 2.6lbs (1.2kg)
BT-24
Bluetooth
Version: 4.2
aptX HD Support: Yes
Conection Type: UART

Outputs
Dual Differential Class AB Output Stage

Performance
Signal to Noise Ratio: 96dB
Maximum Date Rate: 3Mbps (typical 1.6 Mbps)
Operating Range: 10+ meters (depending on enviroment)

General
Power Requirements: Provided by Option Port

Weights & Dimensions
Dimensions: 1.4L x 1.0W x 0.5H
Weight: 0.3 oz (9g)
CM-10
Performance
Frequency Response: 20Hz €“ 20kHz
Max SPL: 136dB SPL

Outputs
1 x 3-PIN XLR
Hard Case
Weight & Dimensions
Dimensions: 16.5W x 16D x 7H
Weight (with included product): 13.0 lbs. (5.9 kg)

Color
Snazzy Blue
