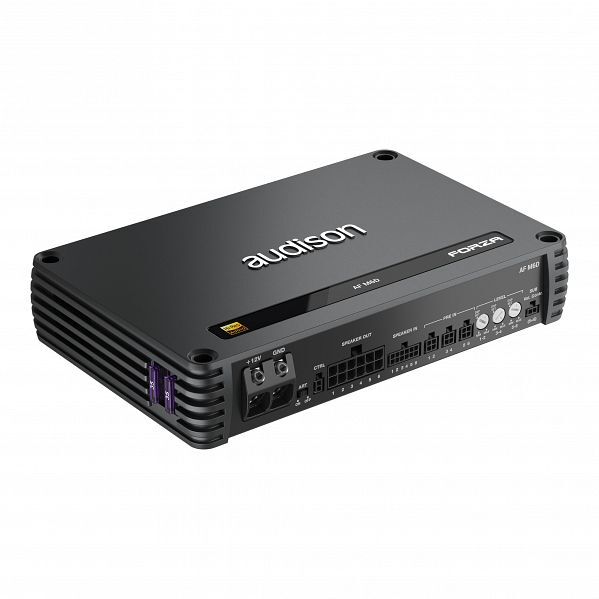

Audison AFM6D Forza Line Amplifier

Description
Amplifier | 1320 W | 6 x 220 W at 2 ohm | D-class Fully Bridgeable

AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a straight wire architecture, without analogue preamp functions such as crossover filtering, and are intended for use with external processors. AF M6D boasts four high-fidelity amplified channels 135Wx6 at 4 Ohm*, 220Wx6 at 2 Ohm* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D, in an amazingly compact package. The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440Wx3 at 4 Ohm*, guaranteeing flexible and powerful performance.

(*)Output Continuous Power (RMS) atb14.4 VDC, 1 Percent THD, all channels driven.

Specification

• Channels: 6
• Class: D-Class
• Efficiency: 81 Percent
• Hi Level Input: Yes
• Low Level Input: Yes
• Digital Input: No
• Power supply voltage / fuse: 11 - 15 VDC
• Operating power supply voltage: 6.5 - 17.5 VDC
• Idling current: 1 A
• Idling current when off: 0.009 mA
• Consumption at 14.4 VDC, 2 Ohm, Max Musical Power: 60 A
• Remote OUT: 6.5 - 15 VDC (150 mA)
• Remote IN: 4 - 15 VDC (1 mA)
• ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 VDC
• Distortion - THD at 100 Hz, 4 OHM, 70 Percent Rated Power: 0.04 Percent
• Bandwidth A (-3 dB, 2 VRMS, 4 OHM): 10 Hz - 42 kHz
• S/N ratio A (A weighted at 1 V): 103 dBA
• Input sensitivity Pre-In: 0.6 - 6 VRMS
• Input sensitivity Speaker-In: 2.2 - 22 VRMS
• Total Power RMS: 1320 W
• Minimum load impedance: 6 Ch 2 Ohm, 3 Ch - (Bridge) 4 Ohm
• Output Power (RMS) at 12.0 - 14.4 VDC, 1 Percent THD:
• 6Ch at 4 OHM: 135 W x 6
• 6Ch at 2 OHM: 220 W x 6
• 3Ch (Bridge 1/2; 3/4; 5/6) at 4 Ohm: 400 W x 3
• Adjustable Crossover: No
• CEA Specifications:
• Output power at 4 Ohm, 1 Percent THD+N, 14.4 V: 130 W x 6
• SN ratio (ref. 1W output): 80 dB
• Input Type: Pre-In / Speaker-In
• Remote Sub Volume: (-12 - +12) dB
• Fuse: 2 x 35A
• Weight: 1.95 kg
• Dimensions:
• Dimension A: 240 mm
• Dimension B: 156 mm
• Dimension C: 47 mm

Features
Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
Unbeatable power/volume ratio up to 0.68 W RMS/cm reaching 83 Percent of efficiency
Hi-Res compatibility performance, with an extended audio band up to 40 kHz
Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
