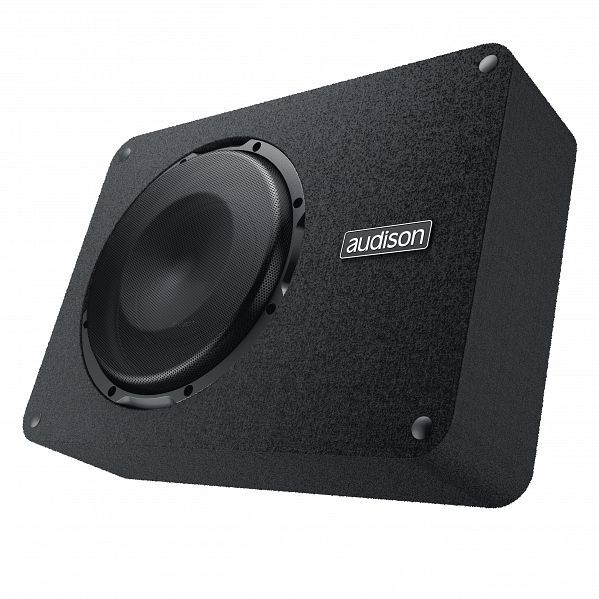

Audison APBX10DS 10" Sealed Subwoofer Box Prima Line

The APBX 10 DS, a 10" subwoofer loaded in a 12 - litres sealed enclosure, is the lines flagship. It is dedicated to the highest performing Prima systems, using the AP1 D amplifier for the sub section. The speakers mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele & Small parameters set - up provides the ideal balance for all music genres.

Specification

• Component Passive Sealed Sub Box
• Subwoofer size mm (in.) 250 (10)
• Power Handling
• 800W peak
• 400W continuous
• Impedance 4 + 4 Ohm
• Sub box size mm (in.) 470 (18.5) x 142 (5.59) x 334 (13.15)
• Weight of one component kg (lb.) 8,63 (19.03)
• Magnet High density flux ferrite
• Cone Water - repellent pressed paper
• Subwoofer Voice coil mm (in.) 60 (2.36)

Features

• Ultra - low profile (5.6 in. / 142 mm) box with sealed design perfectly tuned to fully exploit the APS 10 D driver.
• 2S2 (2 Sides/2 Sounds) design provides the ability to choose between Down - Firing mounting to increase the low - frequency extension and Up - Firing install to obtain more punch and definition.
• Levelling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
• SSP (Sub Smart Plug) features both traditional push contacts and a Plug - & - Play terminal block to easily configure the impedance as required and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
• Special designed cone - dust cap - basket geometry which guarantees a long linear excursion capability (11 mm, one - way).
• Massive driver motor assembly, optimized with FEM (Finite Element Modelling) for perfect control under high excursion conditions.
• Water - repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
• Sturdy metal grid included for a total protection of the subwoofer driver
