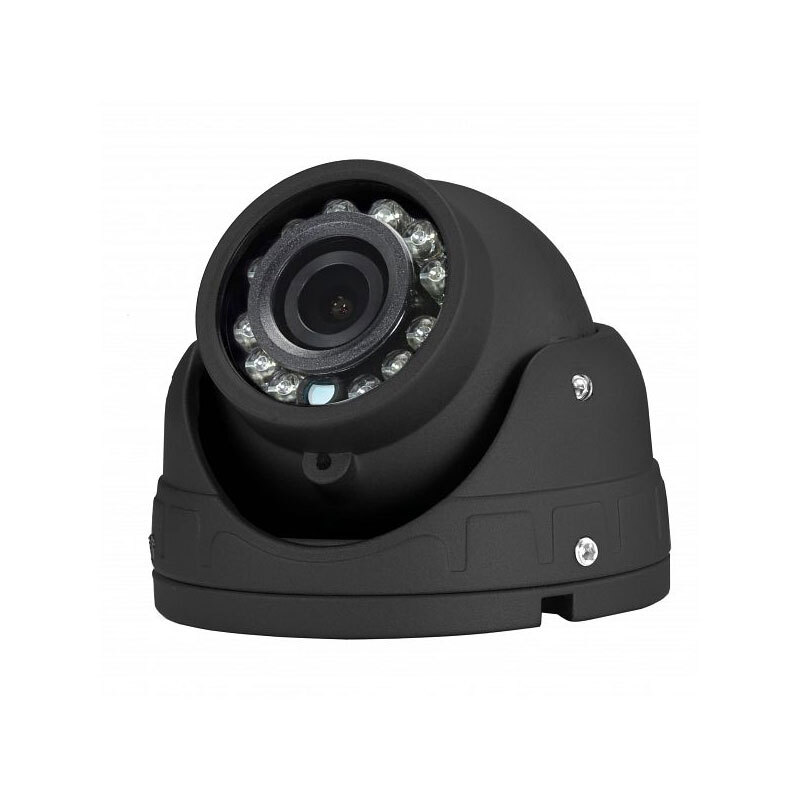

AVC17 Heavy duty ahd 1080p internal roof camera

Introducing the Aerpro AVC17 AHD 1080P Heavy Duty Internal Roof Mount Camera, a commercial-grade camera from the Aerpro Advanced Safety Vision Systems range. Designed to deliver exceptional clarity and reliability for vehicle safety and surveillance, this rugged camera features advanced AHD (Analogue High Definition) technology, providing high-definition visuals that significantly enhance visibility and situational awareness.

The AVC17's universal roof mount with adjustable ball-mount camera lens allows flexible positioning in the vehicle, optimising the field of view to suit diverse applications. Capture a wide field of vision with a 110 degree diagonal lens angle on the camera and independent ball-mount camera adjustments, ensuring comprehensive coverage of vehicle surroundings.

Compatible with 12V or 24V systems, the AVC17 is suitable for a wide range of vehicles, including Vans, motorhomes, buses, trucks, semi-trailers, agricultural vehicles, heavy machinery, tractors and more. Equipped with 12x IR LEDs, it offers enhanced night vision capability, delivering clear imaging in low-light conditions.

The camera utilises a secure 4-pin wired connection for stable, weatherproof connectivity.

Backed by our industry-leading 5-year warranty, the Aerpro AVC17 AHD 1080P Heavy Duty Internal Roof Mount Cameras combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.

Features:

• 1080P AHD (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology, providing high-resolution images for enhanced visibility
• Universal Roof Mount: The adjustable ball mounted lens enables flexible positioning on the side of your vehicle, optimising the field of view
• 110 degree Lens Angle: Capture a wide field of view, ensuring comprehensive coverage of the vehicle surroundings
• Conformal Coating: Extra protection with conformal coating on the PCB ensures reliable performance even in harsh conditions.
• 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
• 12x IR LEDs: Enhanced night vision capability, providing clear imaging even in low-light conditions
• Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
• Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind

Specs:

• Mounting Type: Roof Mount (Internal)
• Viewing Type: Reverse
• Lens Angle Degree:
  • Horizontal: 95
  • Vertical Angle: 55
  • Diagonal: 110
• Image Sensor: CMOS
• Resolution: 1080P AHD
• Signal System: PAL
• IP Rating: IP6X
• Vibration Rating: 5.9G
• Voltage: 12/24V
• Minimum Illumination: 0.01 Lux
• Number of IR LEDs: 12
• Built in Microphone: No
• Connection Type: 4 Pin
• Cable Length from Camera: 50cm
• Dimensions:
  • 70 x 63 mm (Including Bracket)
• Wired or Wireless: Wired
• Inclusions:
  • 1 x AHD 1080P Roof Mount Camera
  • 1 x 50cm Camera Cable
• Additional Information:
  • This is a camera only, monitors and camera cables are sold separately.
