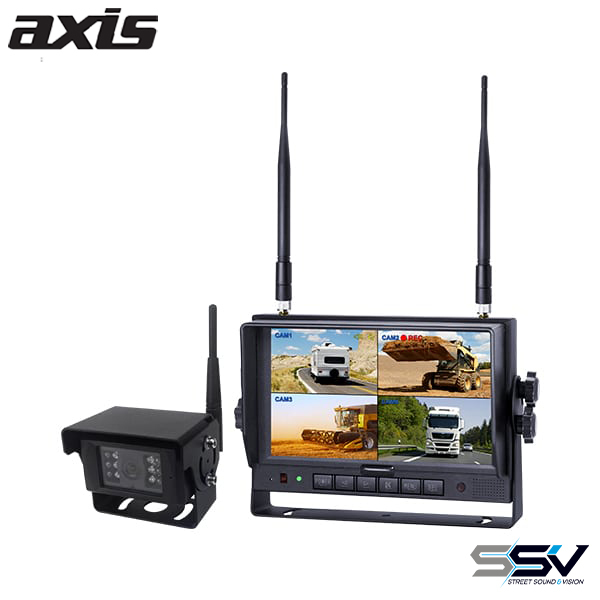

Axis 7" Wireless Rear View Kit

MONITOR

– LCD Size: 178mm (7”)

– Resolution: 800 x 3 (RGB) x 480

– Contrast: 500:1

– Brightness: 400 cd/m²

– Viewing Angle: U: 50 / D: 70, R/L: 70

– Dot Pitch: 0.0642(W) x 0.1790(H)

– Aspect Ratio: 16:9

– Image Orientation: Normal / Mirror / Flip / Mirror Flip

– Inputs: 4 Channels

– Operating Frequency: 2.4 ~ 2.4835 GHz

– Receiving Sensitivity: -89 dBm

– Pairing to Camera/s: Auto when camera activated

– Compression Format: MPEG4

– Transmit Output Power: 17 dBm

– Modulation: 2.4G FSK/GFSK

– Time Delay: 120ms

– Transmitting Range: 120 Metres (approx)

– Recording Media: Micro-SD / TF Card (not supplied)

– Max SD Card Capacity: 128GB

– Cycled Recording: 1 ~ 4 channels

– Signal System: PAL / NTSC

– Power Supply: DC 10-32V

– Power Consumption: 6W Max

– On-board Loudspeaker: 1.5W ?

– Operating Temperature: -20~+70°C

CAMERA

– Image Device: 1/3” CCD PC1089 Sensor

– Viewing Angle: 120°

– Signal System: PAL

– Effective Pixels: 728 x 488

– Sensing Area: 4.6228mm x 3.6112mm

– Scanning System: 2:1 Interlace

– Sync System: Internal

– Horizontal Sync Frequency: 15.625 KHz

– Vertical Sync Frequency: 50 Hz

– S/N Radio: Better than 48dB

– White Balance: Auto

– Electronic Shutter: 1/50 (PAL) ~1/100,000 seconds

– Operating Frequency: 2.4 ~ 2.4835 GHz

– Receiving Sensitivity: -89 dBm

– Line of Sight Range: 120 metres

– Compression Format: MPEG4

– Frame Rate: 25f/s

– Transmit Output Power: 17 dBm

– RF Bit Rate: 4Mbps

– Minimum Illumination: 0 Lux (12 IR LEDs)

– Night Vision Distance: 10m

– Audio: Yes

– Ingress Protection: IP69

– Power Supply: DC 8-36V

INCLUDED

Mounting Brackets:

– Dash Mount

– U-Shape Mount

Accessories:

– Sunshade

– Remote Control

– 3dB Patch Antenna forEnhanced Range
