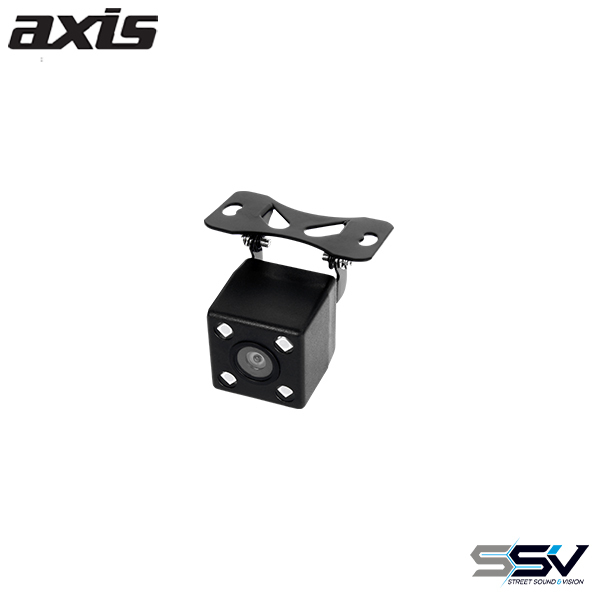

The SD23 is a versatile 12/24v input and IP67 weatherproof rear-view camera. It connects easily with RCA input LCD monitors and features selectable parking guidelines, making reversing safer and easier.
– Image Device: 1/3” CMOS
– Diagonal Viewing Angle: 165°
– Horizontal Viewing Angle: 120°
– Signal System: PAL
– Effective Pixels: 640 x 480
– Resolution: 480 TV Lines
– Compatibility: All Monitors with RCA Input
– Lens: Full Glass
– Orientation: Selectable Mirror/Non Mirror
– Guidelines: Selectable On/Off
– Night Vision: 0.2 Lux with 4 IR
– Ingress Protection: IP67
– Integrated Microphone: No
– Operating Temp: -20 to 70°
– Power Consumption: 90-300mA
– Connection: Mini 4 Pin Terminated RCA (M)
– Lead: 8M
– Dimensions: 23.4W x 23.4H x 25D mm (Excluding Bracket)
– Power Supply: 9-32V DC
(SD23)
