BlackVue DR770X-1CH-128 Single Channel Dash Cam with Full HD Dash Cam with Built-in GPS and Wi-Fi

BlackVue DR770X-1CH-128 Single Channel Dash Cam with Full HD Dash Cam with Built-in GPS and Wi-Fi

128 GB SDHC Included

SKU:DR770X-1CH-128

$629.00


In Stock

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

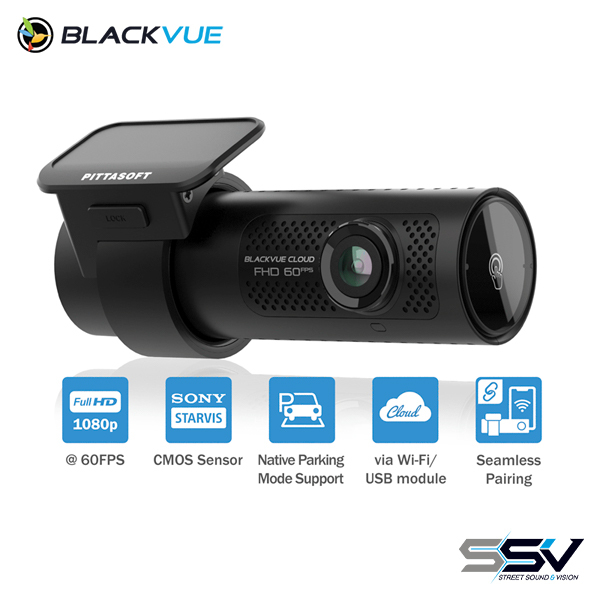

Upgrade your vehicle's security with the BlackVue DR770X-1CH-128 Full HD Dash Cam. Equipped with a high-quality SONY STARVIS 2.1MP sensor, this dash cam delivers exceptional Full HD 1080p resolution at 60 frames per second. Capture clear and detailed footage of your journeys, ensuring that no important details are missed.

The BlackVue DR770X-1CH-128 features built-in GPS for precise location tracking and convenient visualization of your vehicle's route on the map during video playback. With the 2.4GHz Wi-Fi connectivity, easily connect your smartphone or tablet to the dash cam and take advantage of the BlackVue App for seamless file management, settings customization, and real-time video streaming.

Take full advantage of the native parking mode with the built-in voltage monitor, which helps protect your vehicle's battery. The dash cam automatically switches to parking mode when the ignition is turned off, and you can customize the voltage cutoff and timer settings using the BlackVue App. The package includes a hardwiring cable for easy integration with your vehicle's fuse panel. Additionally, the BlackVue DR770X-1CH-128 is compatible with various BlackVue parking mode kits and batteries for extended parking surveillance capabilities.

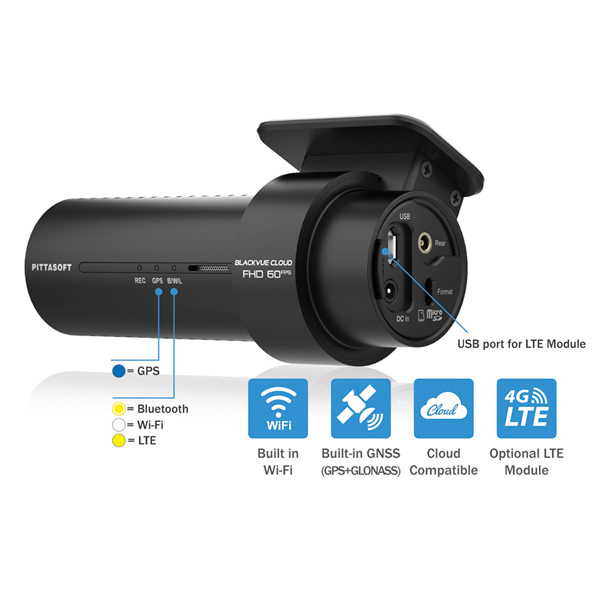

With the included 128GB SDHC card, you have ample storage space to store your recordings without the need for frequent manual deletion. Optionally, you can connect an external LTE module via the USB port to enable additional cloud features and enhance connectivity.

Effortlessly manage your dash cam and access its settings through the user-friendly BlackVue App and Viewer. Whether you're using a smartphone, tablet, or computer, you can easily browse through your recorded videos, adjust settings, and enjoy the convenience of the BlackVue Cloud service.

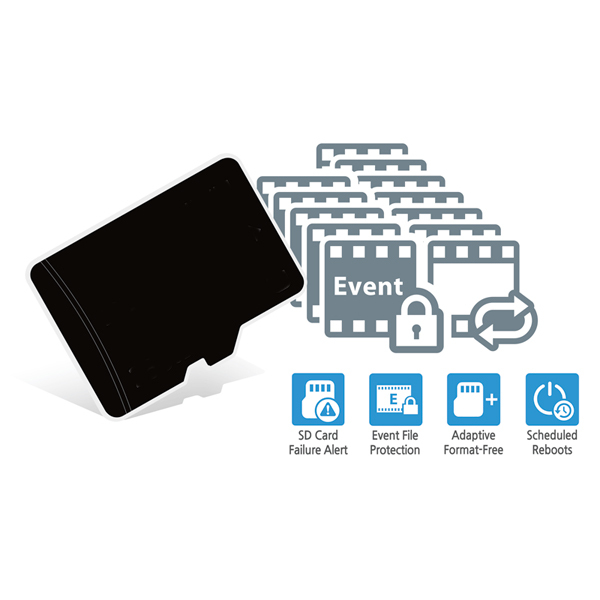

Rest assured that your videos are protected with event files overwrite protection, adaptive format-free file management, and SD card failure alerts. The built-in impact sensor triggers event recording to capture important moments on the road, while the BlackVue App and Viewer allow you to filter and quickly find specific video files based on events, such as impacts or motion detections.

Experience reliable performance and enjoy peace of mind on the road with the BlackVue DR770X-1CH-128 Full HD Dash Cam. Its advanced features, high-resolution footage, and comprehensive recording options make it an ideal companion for enhancing your driving safety.

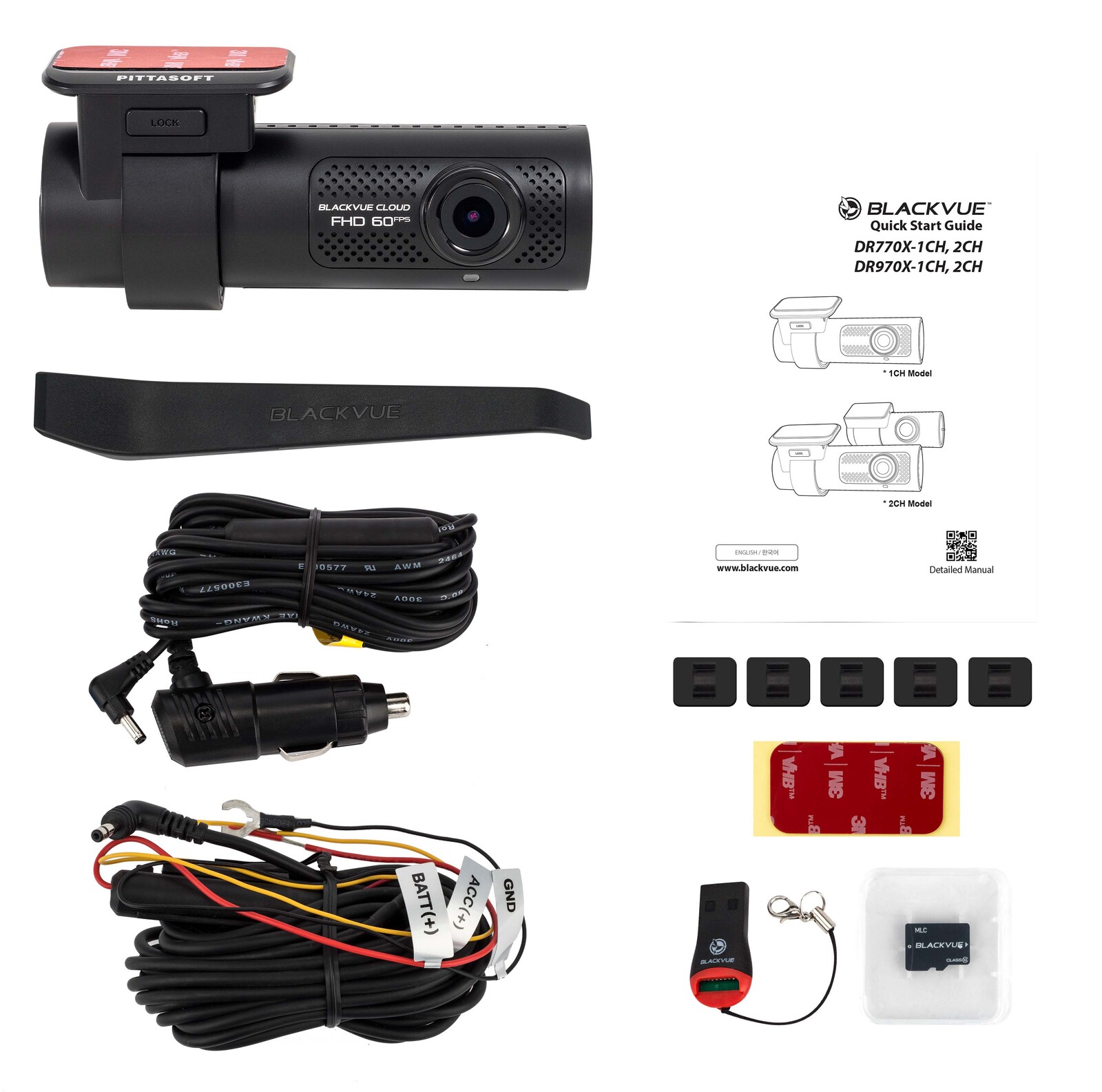

What's included

  • Front Camera
  • Quick start guide
  • Cable clips (5EA)
  • microSD card
  • microSD card reader
  • Spare mount sticky pads
  • Hardwiring power cable
  • Cigarette lighter power adapter
  • Pry tool
Specifications
Model Name DR770X-1CH
Channel

1CH (upgradable to 2CH)
Highlights

Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
Product Dimensions

Black / Width 118.5mm x Height 36mm / 104g
Memory Support

microSD card up to 256GB
Recording Modes

Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode

YES (hardwiring cable included)
Parking Mode Event Voice Notifications

YES
Imaging Sensor

Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle

Diagonal 139°, Horizontal 116°, Vertical 61°
Resolution Frame Rate

Full HD @60fps
* Frame rate may vary during Wi-Fi streaming
Video Codec

H.264 (AVC)
Image Quality and Bitrate Front/Rear

Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps
Format Free

YES (Adaptive)
Event File Overwrite Protection

YES (up to 50)
SD Card Failure Alert

YES
Scheduled Reboot

YES
Video File Extension

MP4
Wi-Fi

Built-in (802.11 b.g.n)
Cloud Compatible

YES
GPS

Built-in (Dual Band : GPS, GLONASS)
Microphone

Built-in
Speaker

Built-in
Impact Sensor

3-Axis Acceleration Sensor

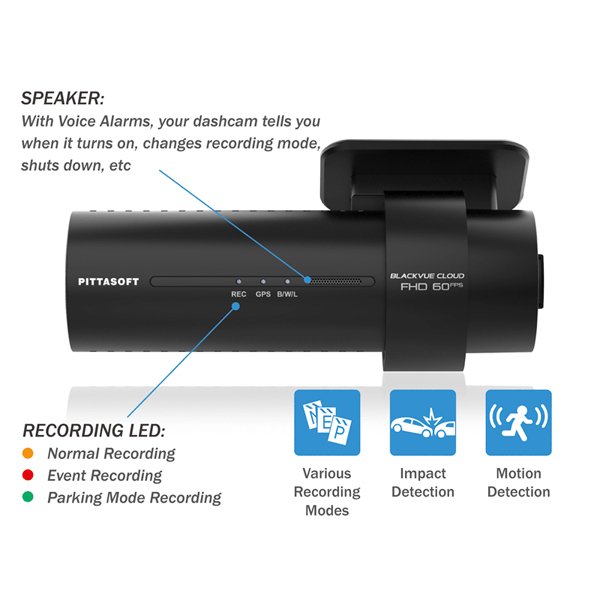

LED Indicators

Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Button

Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.
Operation Temperature

-20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature

-20 °C − 80 °C (-4 °F − 176 °F )
High Temp Cut Off

Approx. 80 °C (176 °F)
Backup Battery

Built-in supercapacitor
Input Power

DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour

Normal Mode (GPS On/1CH): Avg. 240mA / 12V
Parking Mode (GPS Off/1CH): Avg. 190mA / 12V
* Actual power consumption may vary depending on use conditions and environment
Certifications

FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Software

BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
Application

BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher
Others

Adaptive Format-Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)



(DR770X-1CH-128)
