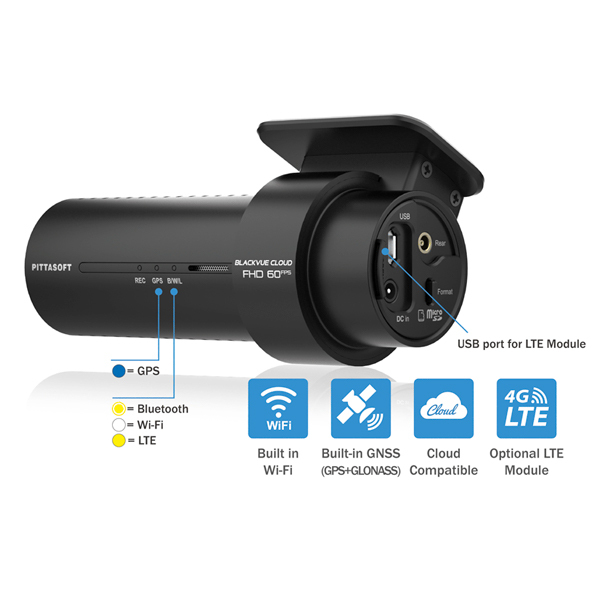

BlackVue DR770X-1CH-256 Single Channel Dash Cam with Full HD Dash Cam with Built-in GPS and Wi-Fi

256 GB SDHC Included

SKU:DR770X-1CH-256

$729.00



In Stock

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Enhance your driving experience with the BlackVue DR770X-1CH-256 Full HD Dash Cam. Featuring a high-performance SONY STARVIS 2.1MP sensor, this dash cam captures crystal-clear Full HD 1080p footage at a smooth 60 frames per second. Enjoy exceptional image quality and ensure that every detail on the road is recorded accurately.

Equipped with built-in GPS, the BlackVue DR770X-1CH-256 provides precise location tracking and allows you to visualize your vehicle's route on the map during video playback. The integrated 2.4GHz Wi-Fi enables seamless connectivity between the dash cam and your smartphone or tablet, giving you easy access to the BlackVue App for convenient file management, customizable settings, and real-time video streaming.

Make the most of the native parking mode with the built-in voltage monitor, designed to protect your vehicle's battery. The dash cam automatically activates parking mode when your vehicle's ignition is turned off, and you can customize voltage cutoff and timer settings via the BlackVue App. The package includes a hardwiring cable for simple integration with your vehicle's fuse panel. Additionally, the BlackVue DR770X-1CH-256 is compatible with various BlackVue parking mode kits and batteries, expanding its parking surveillance capabilities.

With the included 256GB SDHC card, you'll have ample storage space to store your recordings without the need for frequent manual deletion. For enhanced connectivity and additional cloud features, you can optionally connect an external LTE module to the dash cam via the USB port.

Effortlessly manage and customize your dash cam settings using the intuitive BlackVue App and Viewer. Whether you're using a smartphone, tablet, or computer, you can easily browse through your recorded videos, adjust settings, and take advantage of the BlackVue Cloud service for enhanced functionality.

Rest assured that your videos are well protected with event files overwrite protection, adaptive format-free file management, and SD card failure alerts. The built-in impact sensor triggers event recording to capture critical moments on the road, and the BlackVue App and Viewer enable you to filter and quickly locate specific video files based on events such as impacts or motion detections.

Experience reliable performance and enjoy peace of mind on your journeys with the BlackVue DR770X-1CH-256 Full HD Dash Cam. Its advanced features, high-resolution footage, and comprehensive recording options make it an ideal companion for enhancing your driving safety.


What's included

  • Front Camera
  • Quick start guide
  • Cable clips (5EA)
  • microSD card
  • microSD card reader
  • Spare mount sticky pads
  • Hardwiring power cable
  • Cigarette lighter power adapter
  • Pry tool
Specifications
Model Name DR770X-1CH
Channel

1CH (upgradable to 2CH)

Highlights

Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module

Product Dimensions

Black / Width 118.5mm x Height 36mm / 104g

Memory Support

microSD card up to 256GB

Recording Modes

Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode

YES (hardwiring cable included)

Parking Mode Event Voice Notifications

YES

Imaging Sensor

Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle

Diagonal 139°, Horizontal 116°, Vertical 61°

Resolution Frame Rate

Full HD @60fps
* Frame rate may vary during Wi-Fi streaming

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Highest (Extreme): 25 Mbps
Highest: 12 Mbps
High: 10 Mbps
Normal: 8 Mbps

Format Free

YES (Adaptive)

Event File Overwrite Protection

YES (up to 50)

SD Card Failure Alert

YES

Scheduled Reboot

YES

Video File Extension

MP4

Wi-Fi

Built-in (802.11 b.g.n)

Cloud Compatible

YES

GPS

Built-in (Dual Band : GPS, GLONASS)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED

Button

Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Operation Temperature

-20 °C − 80 °C (-4 °F − 176 °F)

Storage Temperature

-20 °C − 80 °C (-4 °F − 176 °F )

High Temp Cut Off

Approx. 80 °C (176 °F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour

Normal Mode (GPS On/1CH): Avg. 240mA / 12V
Parking Mode (GPS Off/1CH): Avg. 190mA / 12V
* Actual power consumption may vary depending on use conditions and environment

Certifications

FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC

Software

BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher

Application

BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher

Others

Adaptive Format-Free File Management System

Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)



(DR770X-1CH-256)
