BlackVue DR770X-1CH-64 Single Channel Dash Cam with Full HD Dash Cam with Built-in GPS and Wi-Fi
64 GB SDHC Included
SKU:DR770X-1CH-64
Calculate Shipping
Shipping with Signature

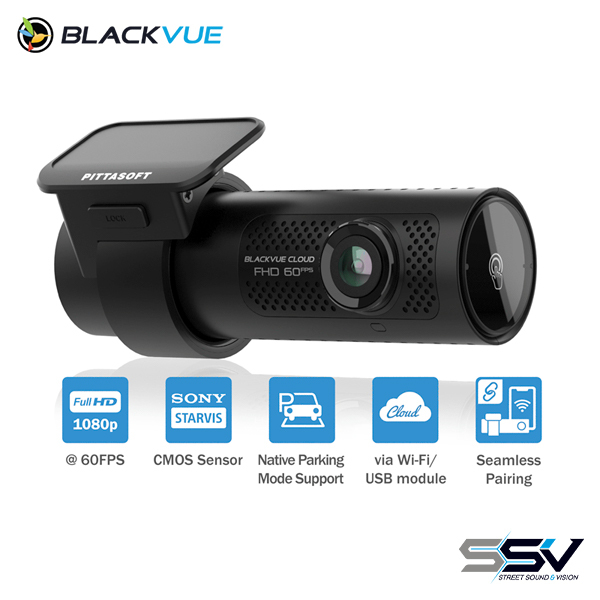

Upgrade your vehicle's security and capture clear, high-quality footage with the BlackVue DR770X-1CH-64 Full HD Dash Cam. Equipped with a Sony STARVIS 2.1MP sensor, this dash cam ensures exceptional image quality even in low light conditions. Record fluid videos at a wide 139° view angle and enjoy Full HD 1080p resolution at up to 60 frames per second. The included 64GB SDHC card provides ample storage for your recordings.
The BlackVue DR770X-1CH-64 features built-in GPS for visualizing your vehicle's location on the map during video playback and overlaying speed information on videos. Connect to the dash cam easily using the 2.4GHz Wi-Fi and take advantage of the BlackVue App for seamless file management and settings customization. With the optional external LTE module, you can enjoy enhanced connectivity and access BlackVue Cloud via Wi-Fi hotspot.
Experience the convenience of native parking mode with the built-in voltage monitor. The hardwiring cable, included with the dash cam, enables easy integration with your vehicle's fuse panel. Customize voltage cutoff and timer settings through the BlackVue App to ensure optimal protection for your vehicle battery. The BlackVue DR770X-1CH-64 is also compatible with various BlackVue parking mode kits and batteries for extended parking surveillance capabilities.
Effortlessly manage your dash cam and access its settings with the BlackVue App and Viewer. Whether you're using a mobile device or computer, you can easily browse through your video recordings, make adjustments, and enjoy the benefits of the BlackVue Cloud service. The built-in speaker provides audio alerts for dash cam operations, and the impact sensor triggers event recording to capture critical moments on the road.
Rest assured that your videos are protected with event files overwrite protection, adaptive format-free file management, and SD card failure alerts. BlackVue tags all videos for easy filtering and quick access through the BlackVue App and Viewer. The dash cam's reliable performance and comprehensive features make it a reliable choice for ensuring your safety and providing peace of mind on the road.
What's included
- Front Camera
- Quick start guide
- Cable clips (5EA)
- microSD card
- microSD card reader
- Spare mount sticky pads
- Hardwiring power cable
- Cigarette lighter power adapter
- Pry tool
Specifications | |
---|---|
Model Name | DR770X-1CH |
Channel |
1CH (upgradable to 2CH) |
Highlights |
Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module |
Product Dimensions |
Black / Width 118.5mm x Height 36mm / 104g |
Memory Support |
microSD card up to 256GB |
Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). |
Parking Mode |
YES (hardwiring cable included) |
Parking Mode Event Voice Notifications |
YES |
Imaging Sensor |
Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
Viewing Angle |
Diagonal 139°, Horizontal 116°, Vertical 61° |
Resolution Frame Rate |
Full HD @60fps |
Video Codec |
H.264 (AVC) |
Image Quality and Bitrate Front/Rear |
Highest (Extreme): 25 Mbps |
Format Free |
YES (Adaptive) |
Event File Overwrite Protection |
YES (up to 50) |
SD Card Failure Alert |
YES |
Scheduled Reboot |
YES |
Video File Extension |
MP4 |
Wi-Fi |
Built-in (802.11 b.g.n) |
Cloud Compatible |
YES |
GPS |
Built-in (Dual Band : GPS, GLONASS) |
Microphone |
Built-in |
Speaker |
Built-in |
Impact Sensor |
3-Axis Acceleration Sensor |
LED Indicators |
Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED |
Button |
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. |
Operation Temperature |
-20 °C − 80 °C (-4 °F − 176 °F) |
Storage Temperature |
-20 °C − 80 °C (-4 °F − 176 °F ) |
High Temp Cut Off |
Approx. 80 °C (176 °F) |
Backup Battery |
Built-in supercapacitor |
Input Power |
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
Power Consumption Hour |
Normal Mode (GPS On/1CH): Avg. 240mA / 12V |
Certifications |
FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC |
Software |
BlackVue Viewer |
Application |
BlackVue Application |
Others |
Adaptive Format-Free File Management System |
Bluetooth | Built-in (V2.1+EDR/4.2) |
LTE | External (optional) |
(DR770X-1CH-64)
