BlackVue DR770X-2CH-IR-64 Dual Channel Dash Cam Full HD 1080P 60fps + Full HD 1080P 30fps with Sony STARVIS Sensors

64 GB SDHC Included

SKU:DR770X-2CH-IR-64

$729.00



In Stock

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

The BlackVue DR770X-2CH-IR-64 is an advanced in-car drive recorder designed to provide comprehensive coverage both inside and outside your vehicle. With its Full HD 1080P resolution at 60 frames per second (fps) for the front camera and Full HD 1080P at 30 fps for the infrared interior camera, this dash cam captures clear and detailed footage in various lighting conditions.

Equipped with Sony STARVIS 2.1MP sensors, the BlackVue DR770X-2CH-IR-64 ensures high-quality video recording and enhanced visibility, even in low-light situations. The front camera captures the road ahead, while the infrared interior camera records every detail of the cabin, making it an ideal choice for taxi or rideshare drivers.

The infrared camera features integrated infrared LEDs that activate automatically based on ambient luminosity, allowing it to capture clear footage even in pitch-black lighting conditions. With its ultrawide 180-degree view angle, the interior camera can cover both the driver-side and passenger-side windows simultaneously in most vehicles.

The BlackVue DR770X-2CH-IR-64 supports native Parking Mode, and a hardwiring cable is included for easy installation. The dash cam switches to Parking Mode automatically when the vehicle's ignition is turned off, providing continuous surveillance and protection. Additionally, the dash cam is compatible with BlackVue Parking Mode Kits and Batteries for extended parking mode coverage.

Featuring a built-in GPS, Wi-Fi connectivity, and optional LTE module compatibility, the BlackVue DR770X-2CH-IR-64 offers advanced functionality. The GPS allows you to visualize your vehicle's location on the map during video playback and overlay speed information on your recorded videos. Wi-Fi connectivity enables easy connection with your smartphone or tablet, while the optional LTE module provides access to BlackVue Cloud features and the ability to share Wi-Fi in your car.

The dash cam incorporates intelligent features such as event file overwrite protection, adaptive format-free file management, and SD card failure alerts for enhanced reliability and ease of use. It also includes a built-in speaker, impact sensor, and motion detection, which automatically capture and tag important events. The touch sensor allows for manual event video triggering, and the format button simplifies microSD card maintenance.

With its sleek interface and intuitive controls, the BlackVue DR770X-2CH-IR-64 offers a user-friendly experience. The dash cam's intelligent parking mode protects your car when you are away, with video buffer ensuring that crucial moments leading up to triggering events are recorded.

In summary, the BlackVue DR770X-2CH-IR-64 is a powerful and feature-rich in-car drive recorder that combines front and infrared interior cameras for comprehensive vehicle monitoring. With its advanced sensors, intelligent parking mode, GPS, Wi-Fi connectivity, and optional LTE module compatibility, this dash cam provides reliable protection and peace of mind. Backed by a 3-year warranty, you can trust in its quality and durability.


Specifications
Model Name DR770X-2CH IR
Channel

2CH

Highlights

Full HD (Front + Interior IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)

Product Dimensions

Front: Black / Width 118.5mm x Height 36mm / 104g
Interior: Black / Width 67.4mm x Height 25mm / 27g

Rear Camera Connection

Coaxial cable

Memory Support

microSD card up to 256GB

Recording Modes

Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode

YES (hardwiring cable included)

Parking Mode Event Voice Notifications

YES

Imaging Sensor

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)

Viewing Angle

Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Interior: Diagonal 180°, Horizonal 150°, Vertical 93°

Resolution Frame Rate

Front: Full HD (1920 x 1080) @ 60 fps
Interior: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps

Format Free

YES (Adaptive)

Event File Overwrite Protection

YES (up to 50)

SD Card Failure Alert

YES

Scheduled Reboot

YES

Video File Extension

MP4

Wi-Fi

Built-in (802.11 b.g.n)

Cloud Compatible

YES

GPS

Built-in (Dual Band : GPS, GLONASS)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Interior: Rear Security LED

Rear Camera IR Illumination

940 nm (2 Infrared (IR) LEDs)

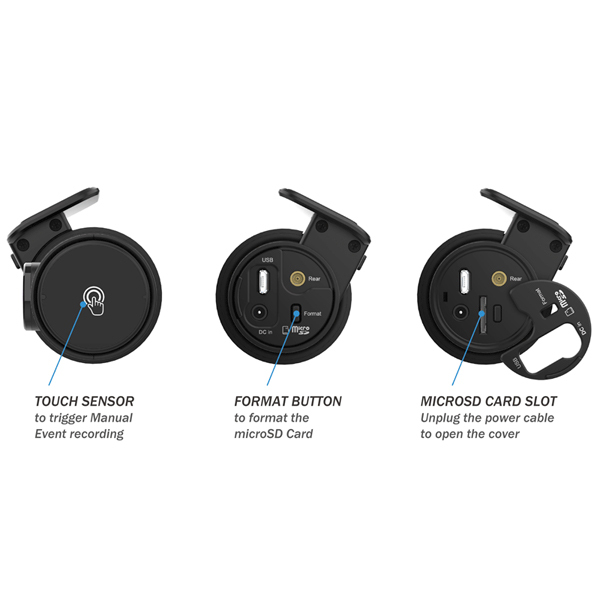

Button

Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Operation Temperature

-20 °C − 80 °C (-4 °F − 176 °F)

Storage Temperature

-20 °C − 80 °C (-4 °F − 176 °F )

High Temp Cut Off

Approx. 80 °C (176 °F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour

Normal Mode (GPS On/2CH): Avg. 380mA / 12V
Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Approx. 40mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.

Certifications

Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Interior: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC

Software

BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher

Application

BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher

Others

Adaptive Format-Free File Management System

Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)

(DR770X-2CH-IR-64)
