BlackVue DR770X-2CH-TR-64 Dual Channel Truck Dash Cam Full HD Front + External Waterproof IR Cam with Cloud, Wi-Fi, GPS, Dual Sony Sensors 24 Volts

64 GB SDHC Included

SKU:DR770X-2CH-TR-64

$799.00



In Stock

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

The BlackVue DR770X-2CH-TR-64 is the ultimate dash cam solution designed specifically for trucks, vans, and commercial vehicles. It combines a powerful front camera with a waterproof external infrared rear camera, providing comprehensive coverage of your vehicle's surroundings.

With Full HD 1080P resolution at 60 frames per second (fps) for the front camera and Full HD 1080P at 30 fps for the rear camera, the BlackVue DR770X-2CH-TR-64 captures detailed footage of both the front and rear of your vehicle. Equipped with cutting-edge SONY STARVIS 2.1MP sensors, the dash cam ensures exceptional image quality and clarity, even in low-light conditions. The rear camera is enhanced with 6 infrared LEDs, enabling clear recording in total darkness.

The BlackVue DR770X-2CH-TR-64 features native Parking Mode functionality, allowing you to hardwire it to your vehicle's fuse panel without the need for additional accessories. The dash cam automatically switches to Parking Mode when your vehicle's ignition is turned off, providing continuous surveillance and protection. You can customize the voltage cutoff and timer settings using the BlackVue App.

For extended Parking Mode coverage, the dash cam is compatible with all BlackVue Parking Mode Kits and Batteries. This ensures your vehicle is safeguarded even when parked for long periods.

Included in the package are the front camera, exterior infrared camera, quick start guide, cable clips, microSD card, microSD card reader, spare mount sticky pads, screws, coaxial cable (15m), hardwiring power cable, cigarette lighter power adapter, and pry tool.

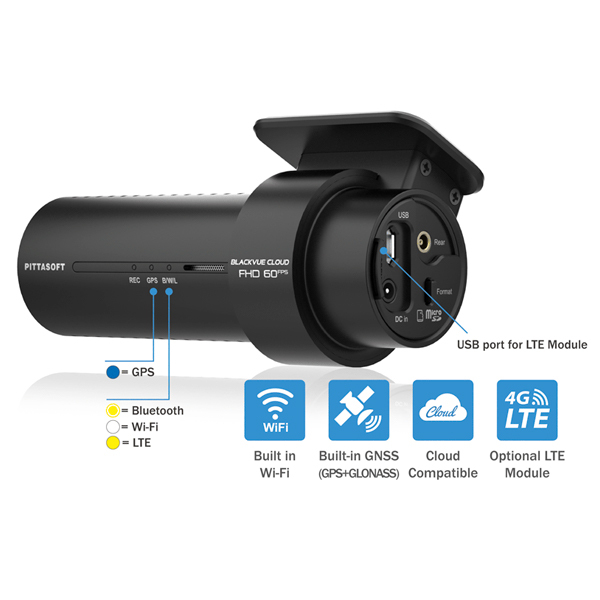

Optionally, you can enhance your BlackVue DR770X-2CH-TR-64 with the LTE Connectivity Module (CM100GLTE), which provides 4G LTE connectivity for BlackVue Cloud features. Simply insert a valid Nano SIM card, and your dash cam can act as a mobile hotspot, offering wireless internet access to up to five devices.

The BlackVue DR770X-2CH-TR-64 is equipped with a built-in speaker, impact sensor, and motion detection. The speaker provides audio notifications for powering on, shutting down, and detecting errors. The impact sensor triggers event recording when it detects impacts, and the motion detection mode captures visual movements around your vehicle. You can easily manage and filter recorded videos using the BlackVue App and Viewer.

To ensure the safety of your videos, the dash cam offers event file overwrite protection, adaptive format-free file management, and SD card failure alerts. Event files can be protected from being overwritten, and the BlackVue-developed file system improves recording stability while minimizing the need for microSD card formatting. In case of an SD card failure, the dash cam alerts you with a voice prompt.

The BlackVue DR770X-2CH-TR-64 excels in Parking Mode, recording both motion and impact events. You can choose specific detection regions to minimize false triggers caused by external factors. The dash cam continuously records at 1FPS (one frame per second), providing comprehensive coverage over an extended period. When an impact is detected, the dash cam creates a buffered event video, ensuring crucial moments leading up to the event are recorded.

In summary, the BlackVue DR770X-2CH-TR-64 is the perfect dash cam for trucks and heavy vehicles. Its powerful front and waterproof external infrared rear cameras, along with advanced features such as native Parking Mode, LTE connectivity options, and extensive event recording capabilities, make it an ideal choice for professional drivers. With the included

Specifications
Model Name DR770X-2CH Truck
Channel

2CH

Highlights

Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)

Product Dimensions

Front: Black / Width 118.5mm x Height 36mm / 104g
Rear: Black / Width 65mm x Height 36mm / 157g

Rear Camera Connection

Waterproof coaxial cable

Memory Support

microSD card up to 256GB

Recording Modes

Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode

YES (hardwiring cable included)

Parking Mode Event Voice Notifications

YES

Imaging Sensor

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle

Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 116°, Horizontal 97°, Vertical 51°

Resolution Frame Rate

Front: Full HD (1920 x 1080) @ 60 fps
Rear: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.

Video Codec

H.264 (AVC)

Image Quality and Bitrate Front/Rear

Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps

Format Free

YES (Adaptive)

Event File Overwrite Protection

YES (up to 50)

SD Card Failure Alert

YES

Scheduled Reboot

YES

Video File Extension

MP4

Wi-Fi

Built-in (802.11 b.g.n)

Cloud Compatible

YES

GPS

Built-in (Dual Band : GPS, GLONASS)

Microphone

Built-in

Speaker

Built-in

Impact Sensor

3-Axis Acceleration Sensor

LED Indicators

Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC

Rear Camera IR Illumination

940nm (6 Infrared (IR) LEDS)

Button

Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Operation Temperature

-20 °C − 80 °C (-4 °F − 176 °F)

Storage Temperature

-20 °C − 80 °C (-4 °F − 176 °F )

High Temp Cut Off

Approx. 80 °C (176 °F)

Backup Battery

Built-in supercapacitor

Input Power

DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour

Normal Mode (GPS On/2CH): Avg. 380mA / 12V
Parking Mode (GPS Off/2CH): Avg. 300mA / 12V
* Approx. 60mA increase in current when IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.

Certifications

Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC
Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC

Software

BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher

Application

BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher

Others

Adaptive Format-Free File Management System

Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (Optional)

(DR770X-2CH-TR-64)
