CANM8 CANNECT Ign, VSS, Ill, Rev, Prk, RPM Outputs Interface

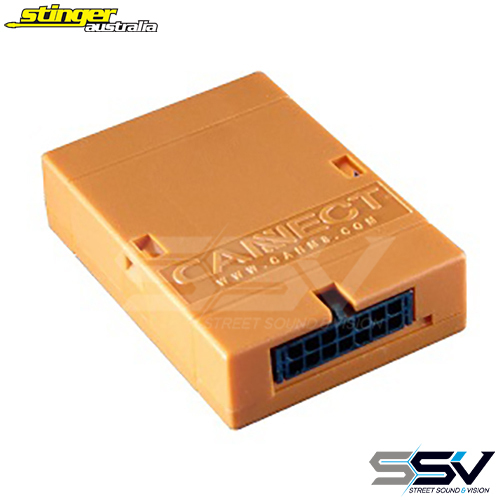

The CANM8 CANNECT NAV is a multi-output CAN Bus interface designed to provide a universal solution for installing after-market electronic products, such as navigation systems, to vehicles which feature CAN Bus wiring. The interface features €œKey-In€� detection with compatible vehicles enabling the ignition-on output to remain active when the ignition is turned off but the key remains in the ignition.
Outputs
N.B. Illumination output is dependent on available vehicle data and may use dipped beam (if available). N.B. Park brake output is dependent on available vehicle data.
Applications
The CANM8 CANNECT NAV is an ideal solution for use when installing navigation systems, car audio & entertainment systems, mobile phone hands-free kits, taxi meters and many other systems which require sensing of vehicle signals. Installation time is drastically reduced as instead of hard wiring into the vehicle to find all the different required outputs, this interface provides 5 of the most common outputs from a mere 4 connections to the vehicle.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
Wiring Harness Details
