CANM8 CANNECT Ignition Output Interface

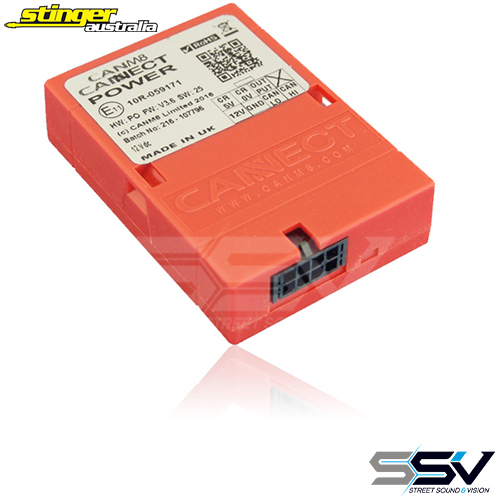

The CANM8 CANNECT POWER is an interface which is an ideal solution for connection to vehicles which feature CAN Bus wiring where a standard ignition-on reference is unavailable. This interface also provides an output on vehicles which feature start-stop technology, meaning that the output will not cancel when the vehicle enters start-stop mode. The interface also features €œKey-In€� detection with compatible vehicles enabling the ignition-on output to remain active when the ignition is turned off but the key remains in the ignition.
Outputs
Applications
The CANM8 CANNECT POWER is ideal for use when installing any after-market equipment that requires an input signal when the vehicle ignition is switched on.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
Wiring Harness Details
