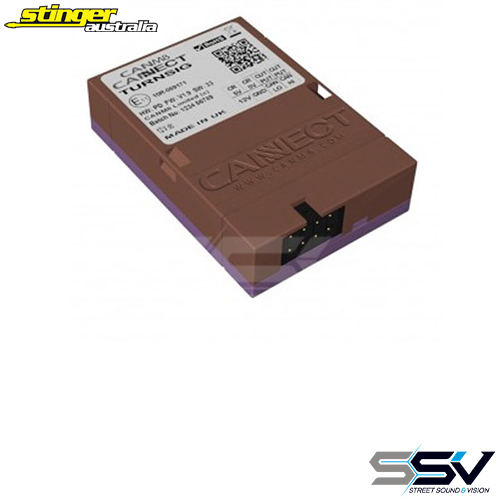

CANM8 CANNECT Indicator Trigger Output Interface

The CANM8 CANNECT TURNSIG is a CAN Bus interface that provides a smooth 12v output from both left and right indicators on vehicles which feature CAN Bus wiring.
Outputs
Applications
The CANM8 CANNECT TURNSIG interface is ideal for connection with auxiliary equipment and telematics devices which require indicator activity information. Many telematics devices record a repeated €œon/off€� signal from the left and right indicators which can lead to large packets of unnecessary data being recorded. The CANM8 CANNECT TURNSIG interface will provide an output when the indicator is turned on and another when it is turned off, allowing for more concise data recording.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details
Wiring Harness Details
