CANM8 CANNECT Speed Pulse Output Interface

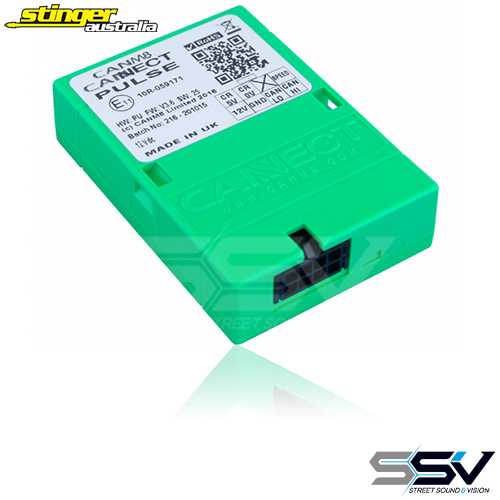

The CANM8 CANNECT PULSE is a CAN Bus interface designed to provide a square pulsed speed signal output from vehicles which feature CAN Bus wiring.
Outputs
N.B. Also available with speed signal output at frequencies of 4 Hz or 10 Hz.
Applications
The CANM8 CANNECT PULSE is most commonly used to provide a speed signal for taxi meter installation via the CAN Bus system, this interface is the speed pulse interface of choice amongst taxi meter installers around the globe.
Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.
The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
LED Status Details

Wiring Harness Details
