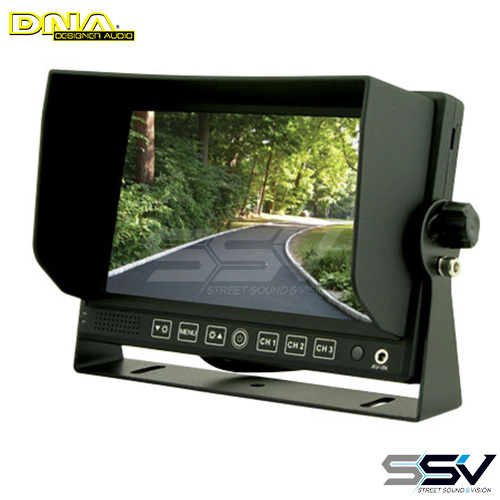

7 Inch LCD Rearview Screen
This high resolution 3 Channel TFT-LCD monitor is ideal for multiple camera applications for full screen viewing. Includes front panel touch buttons with a large removable sun visor and is ideal for Caravans, Buses and Truck installations where a large viewing screen required.
7 Inch TFT-LCD display
Aspect Ratio: 16:9
Video System: (AUTO) PAL & NTSC
Resolution: 800 (RGB) x 480 Pixel
3 Camera Inputs with 3 triggered inputs for each camera
1 Camera AV Input on front panel (CH1)
Dash mountable with either U shape bracket or round shape bracket
Screen sun visor
Inbuilt speaker
Illuminated touch front panel buttons
4 Pin water-resistant lockable camera connections
IR remote included
Image options: UP/Down and Left/Right (mirror)
Operating Temperature: -20°C /+70°C
Operating Voltage: 12V to 24V DC (+/- 10%)
Current Consumption: 5W
Size: 180mm W x 121mm H x 23mm D
Packaging: Display box
(RV70)
