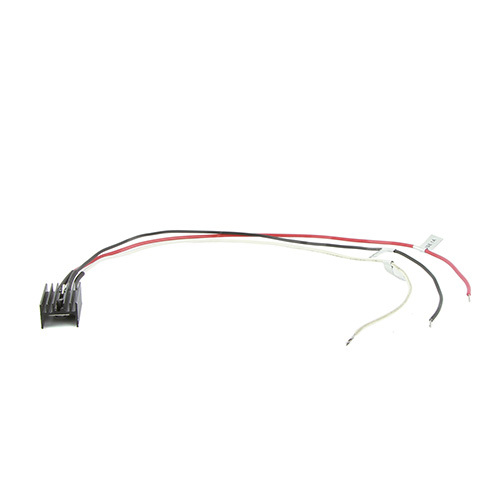

DNA AVR1208 12VDC To 8VDC Converter 1 Amp

12VDC To 8VDC Converter 1 Amp

DNA 12VDC to 8VDC Reverse camera voltage reducer with heatsink.
Allows you to fit a vehicles factory reverse camera to an aftermarket head unit.
Some factory vehicles use a lower voltage to trigger their factory fitted reverse camera – This voltage reducer will allow you to provide a clean 8 volt DC circuit to the camera reverse trigger, for compatibility with aftermarket 12V head units.

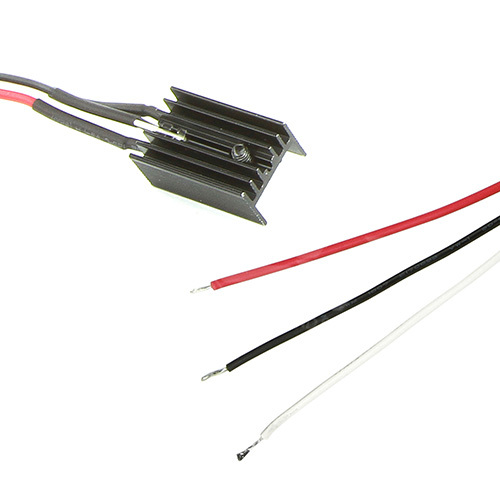

Comes mounted to a heatsink to stop overheating and is fitted with 30cm wire tails for easy installation.
A capacitor is also included to allow a stable current of power for cameras that require very low amperage triggers.
Can also be used on low current 8VDC volt devices with a maximum of 1 amp output.


Features only 3 wires for easy installation:
Red Wire: Connect to switched 12 volt power
Black Wire: Connect to chassis ground
White: Connect to the component turn on wire (8 volt 1 amp output)

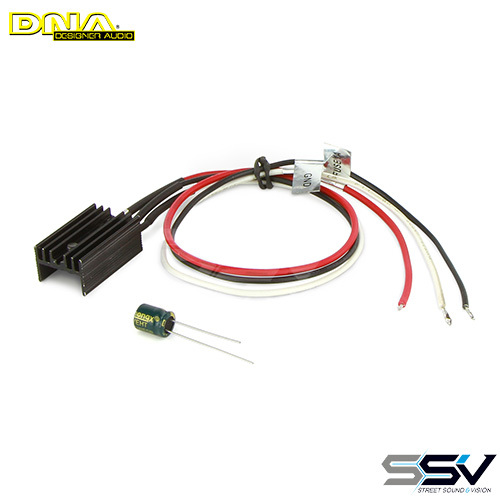

Supplied with 1 x capacitor (Allows a stable current of power for cameras that require very low amperage triggers).

Specifications:
Input Voltage: 12~14VDC
Output Voltage: 8VDC
Amperage Output: 1 Amp
Cable length: 30cm
Heatsink size: 25mm L x 15mm W x 11mm H
Packaging: Sliding blister
