DNA CBA050 Auto Reset Circuit Breaker - 50 Amp

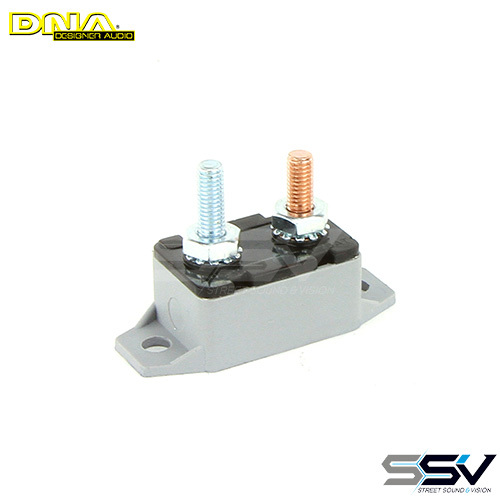

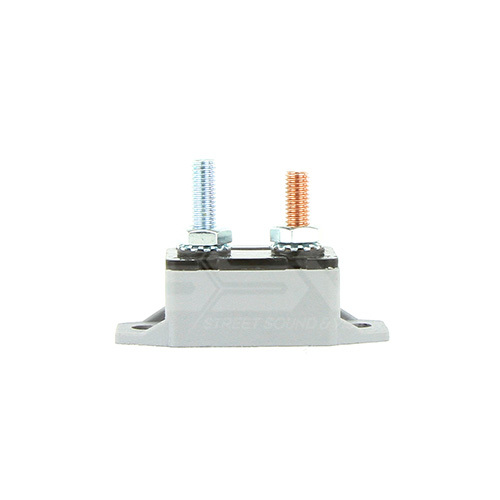

Short Stop Auto Reset Thermal Circuit Breaker - 50 Amp

This single pole thermal type cirucit breaker is perfect for installation applications with battery chargers, cars, trucks, buses, RVs, trolling motors, etc
Available as an option is the CBA050C rubber cover which is designed to fit this circuit breaker

Reset: Auto reset
Voltage Range: 12 VDC~24 VDC
Rated Current: 50 Amps
Pole Count: 1 Pole
Termination: 2 x #10-32 UNF thread terminals. (Copper terminal for connection to battery. Silver terminal for connection to aux device)
Body Material: Black UL-Rated thermoplastic body
Cover Material: Grey thermoplastic cover
Mounting Type: Straight bracket chassis mount with 2 mounting holes at either end of the circuit breaker (40mm hole centre to hole centre)
Size: 51mm L x 21mm W x 34mm H
Packaging: Poly bag with barcode sticker
