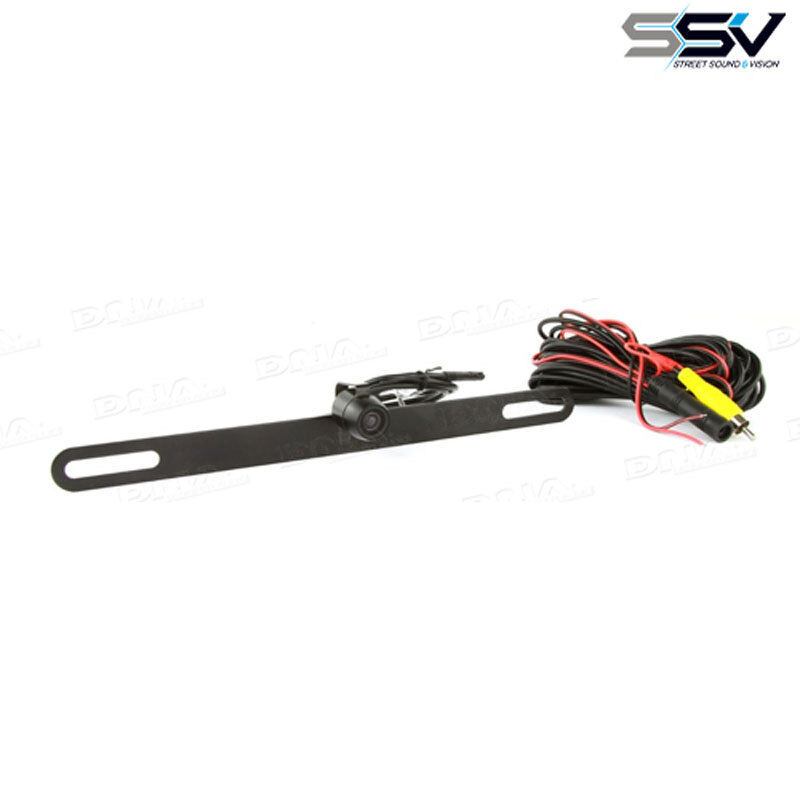

DNA RCN170 CMOS Number Plate Reverse Camera

This miniature number plate camera is a truly universal solution for multipurpose vehicle installations.
Model Strengths:
Universal
Zinc Alloy Housing
Miniature
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes number plate mounting bracket and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear or front mounting applications.

Selectable features:
PAL/NTSC format (Purple wire): By default is set to PAL format. (Cut wire to change to NTSC format)
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)

Specifications:
Image Sensor: CMOS (PC1058K)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V ±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V ±0.5V
Consumption: 100mA ± 10%
Waterproof Rating: IP68
Camera Body Size: 23mm L x 19mm Diameter
Bracket Size: 247mm L x 18mm H x 35mm D (Including camera)
Hole Range: 2 x Oval shaped 37mm long holes for number plate. (allows adjustable length range of 165mm to 232mm for number plates)

Packaging: DNA Gift box with sticker
