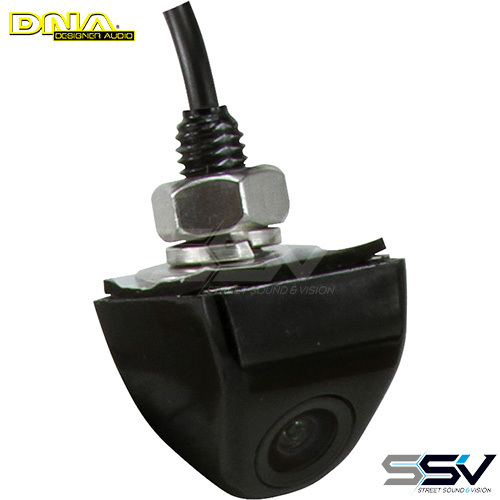

DNA RCS170 CMOS Reverse Camera Stalk Mount

CMOS Reverse Camera Stalk Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

Model Strengths:
OEM Solution
Zinc Alloy Housing
Only Requires 8mm Hole
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Mirror Image*
Flip Image*

Features:
Includes selectable options: PAL/NTSC video format and reverse mirror imaging.
Camera also comes with a stalk mount and has a Waterproof IP68 rating.


Specifications:
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 25mm W x 24mm H x 28mm D
Hole Size: 8mm Diameter

Packaging: DNA Gift box with sleeve
