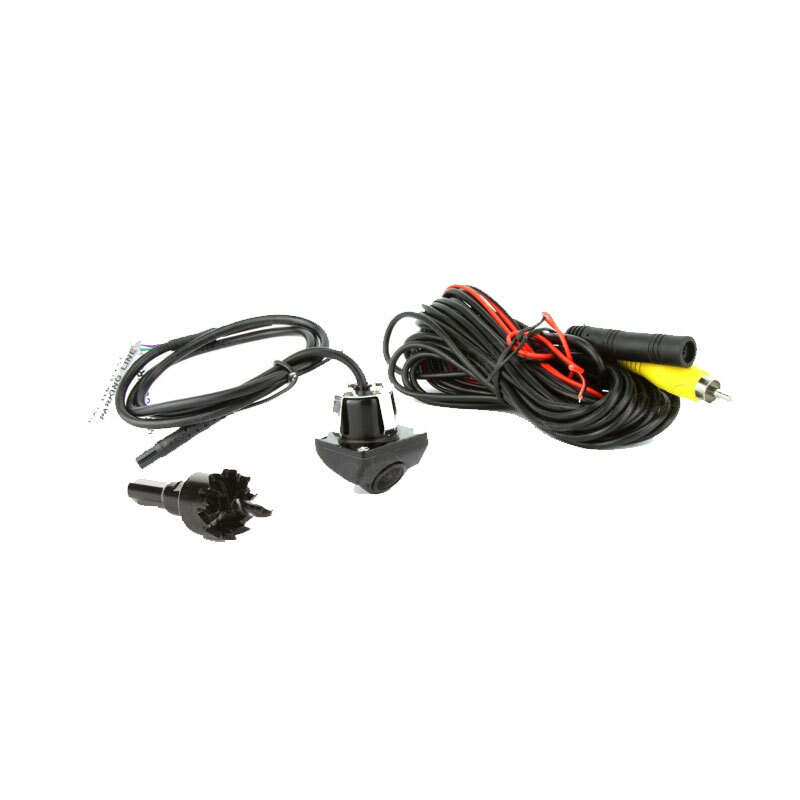

DNA RCSM170 CMOS Reverse Camera Snap Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

Model Strengths:
OEM Solution
Zinc Alloy Housing
Low Profile
Only Requires 20mm Hole
Kit Includes Hole Saw
Mirror Image*
Ideal for:
A neat low profile solution.
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes snap in mount and has a Waterproof IP68 rating.

Selectable features:
PAL/NTSC format (Purple wire): By default is set to PAL format. (Cut wire to change to NTSC format)
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)

Specifications:
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC6V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 26.5mm W x 34mm H x 28mm D
Hole Size: 22mm

Packaging: DNA Gift box
