DNA SWLUNI-C Universal Head Unit Patch Lead 4 SWC (C)

Universal Head Unit Patch Lead For SWCs

Universal head unit patch lead for connection to the DNA range of EVO SWC series of steering wheel controllers.
NOTE: Use with Type C CAN bus SWC controllers with model numbers ending in (C).

This patch lead works by using a loop with a resistor from pin 12 to pin 4 to tell the interface what make of head unit is present. The coloured loop wires provided represent the different resistor values.

Pins 2, 7 and 8 are used for the signal from the interface to the head unit. This will be either a 3.5mm plug or a single wire, this will depend on the brand of head unit.

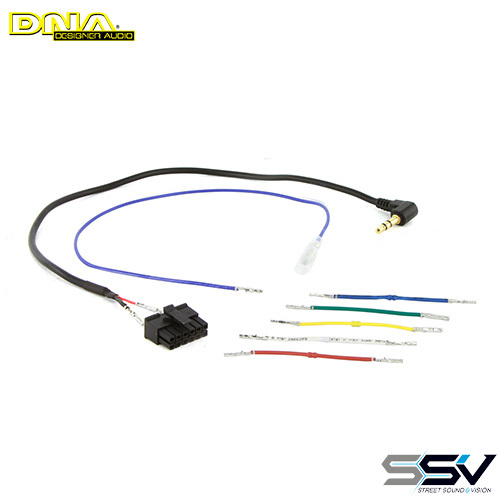

A 3.5mm plug and a single wire are provided, use the correct lead for the make of the head unit being fitted.
Note the orientation of the terminal to be inserted into the connector

Packaging: Poly bag and header card

Notes:

Alpine
Connection: 3.5mm Plug
Green loop pins 4 and 12
White pin 7
Red pin 8
Black pin 2

Clarion
Connection: 3.5mm Plug
Yellow loop pins 4 and 12
White pin 7
Red pin 8
Black pin 2

JVC 3.5mm
Connection: 3.5mm Plug
Red loop pins 4 and 12
White pin 7
Red pin 8
Black pin 2

JVC Single Wire
Connection: Single wire
Red loop pins 4 and 12
Blue single wire pin 8

Kenwood
Connection: Single Wire
White loop pins 4 and 12
Blue single wire pin 8

Pioneer
Connection: 3.5mm Plug
No loop used
Red pin 7
White pin 8
Black pin 2

Sony
Connection: 3.5mm Plug
Blue loop pins 4 and 12
Red pin 7
White pin 8
Black pin 2
