DNA TOYSW02BL Large Switch Suit To Suit Toyota Blank Universal

Large Switch To Suit Toyota - Blank Universal

Designed to fit directly into a large blank factory switch socket in Toyota vehicles.
Simply just pop out the old blanking socket and plug this switch in.

Size: 40mm H x 20mm W x 61mm D
Power Rating: 12VDC 3 Amp

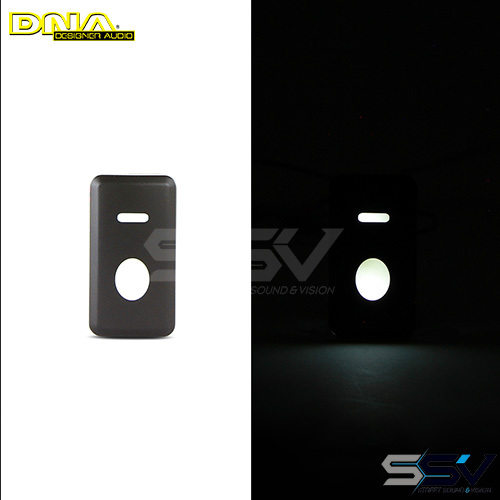

Illumination: Dual White
Switch Style: SPST ON-OFF
Switch Colour: Black
Switch Markings: Simple Eclipse Design
Packaging: DNA Blister & Card

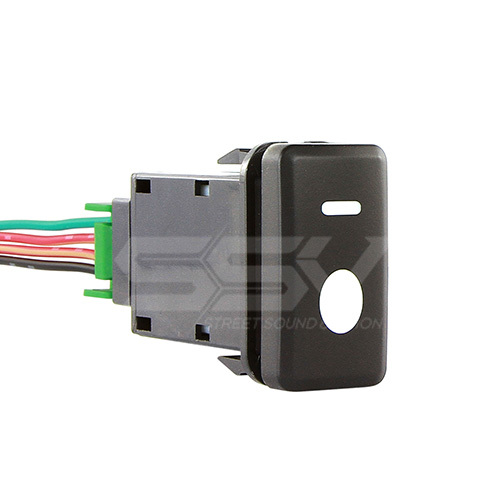

Wiring - From Top to Bottom:
Pin 1 (Green) - Positive Input - Wire Direct to Battery or ACC+
Pin 2 (Red) - Positive Output - Wire to Relay
Pin 4 (Red) - 12V Positive Illumination - Connect to Vehicle Illumination
Pin 5 (Black) - Earth Wire - Run to Vehicle Ground/ Earth
Designed for Positive Switching Only


Suits the following Toyota vehicles:

4Runner 2003-2009
FJ Cruiser 2010-On
Fortuner 2005-2014
Hilux Models (Various) From 2005-2015
Kluger 2001-2007
Landcruiser 100 Series 1998-2007
Landcruiser 75/ 76/ 78/79 Series (Most Years)
Prado 120 Series 2003-2009
