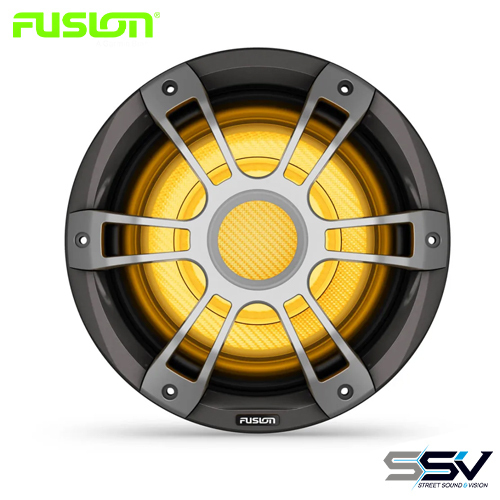

Fusion Signature Series 3i Marine Subwoofers 10" 600-watt CRGBW Sports Grey Marine Subwoofer
SKU:010-02774-11
MADE FOR LIFE ON THE WATER, JUST LIKE YOU
Bring the thunder. The Signature Series 3i subwoofers deliver the drama with premium low frequencies to enhance your listening experience.
Crystal-clear premium sound quality is suited for the marine environment.
Water-resistant connectors provide simplified installation and superior protection.
The rigorously tested marinized design has an IP65 rating.
Built to last season after season, the Fusion® Signature Series 3i Marine Subwoofers include a supported 3-year warranty.
MARINISED CONNECTORS
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.
REDESIGNED GRILLE
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.
TRUE-MARINE™ PHILOSOPHY
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.
POLYPROPYLENE CONE TECHNOLOGY
This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.
LED ILLUMINATION
Cool white, red, green, blue, warm white. You can choose or mix colours to match the mood of your music.
SYSTEM INTEGRATION
These subwoofers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.
General |
|
Physical dimensions (diameter x depth) | 12" sports subwoofer: 14.02" x 10" (356 x 254 mm) 10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm) 10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm) |
Weight | 12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg) 10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg) 10" sports subwoofer: 11.2 lbs (5.06 kg) 10" classic subwoofer: 11 lbs (4.98 kg) |
Water and dust rating | IP65 |
Peak power (Watts) | 12" subwoofer: 1400 watts 10" subwoofer: 600 watts |
RMS power rating (watts) | 12" subwoofer: 700 watts 10" subwoofer: 300 watts |
Sensitivity (1 watt @ 1 metre) | 86 dB |
Magnetic structure | 12" subwoofer: 114 oz 10" subwoofer: 68 oz |
Frequency response | 12" subwoofer: 20 Hz–2 kHz 10" subwoofer: 30 Hz–2 kHz |
Nominal impedance | 4 ohm |
Recommended amplifier power (watts RMS) | 12" subwoofer: 200–1000 watts 10" subwoofer: 50–600 watts |
LED lighting | yes, CRGBW (sports style with LED models only) |
LED supply voltage | 10.8–16 VDC (sports style with LED models only) |
LED load current @14.4 VDC (max) | 300 mA (sports style with LED models only) |
Operating temperature range | 32–122 degrees F (0–50 degrees C) |
Voice coil diameter | 12" subwoofer: 4" 10" subwoofer: 2" |
Cone material | Polypropylene cone with rubber surround |
Compass-safe distance | 12" subwoofer: 181" (460 cm) 10" subwoofer: 205" (520 cm) |
Subwoofer connection | Flying lead with water-resistant 2-way connector, 5.9" (150 mm) |
LED connection (sports style with LED models only) | Flying lead with water-resistant 6-way connector, 5.9" (150 mm) |
Warranty | 3 years |
Mounting Dimensions |
|
Mounting diameter clearance | 12" subwoofer: 12.05" (306 mm) 10" subwoofer: 8.78" (223 mm) |
Mounting depth clearance | 12" subwoofer: 8.15" (207 mm) 10" subwoofer: 5.24" (133 mm) |
Optimum enclosure recommendations |
|
Sealed enclosure volume (fully filled with absorption material) | 12" subwoofer: 2.12 cubic ft (60 L) 10" subwoofer: 0.95 cubic ft (27 L) |
Ported (vented) enclosure volume (lined with absorption material) | 12" subwoofer: 8.83 cubic ft (250 L) 10" subwoofer: 1.6 cubic ft (45 L) |
Port diameter | 12" subwoofer: 4" (101.6 mm) 10" subwoofer: 4.1" (104 mm) |
Port length | 12" subwoofer: 5" (127 mm) 10" subwoofer: 10.43" (265 mm) |
(010-02774-11)
