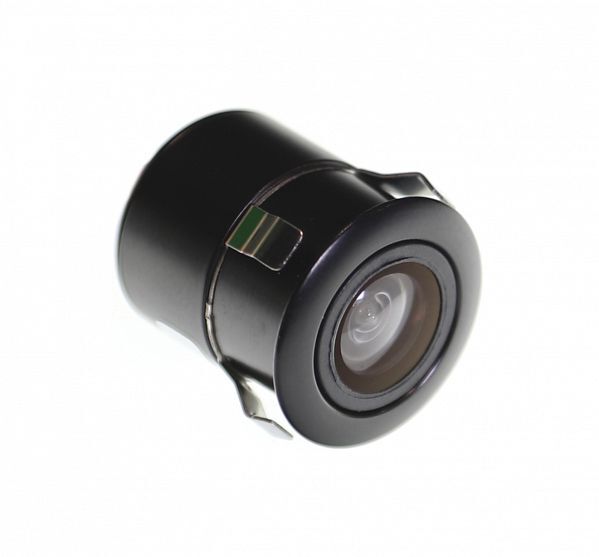

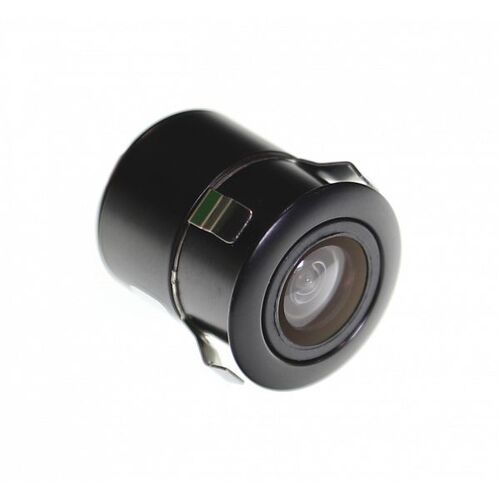

Gator G35CL Flush Mount Camera with Loop System

The Gator G35CL Flush Mount Camera can be used as a front, rear or reverse camera. The IP67 rated camera discreetly mounts into the front or rear bar of the vehicle and provides a 100 degree field of view. It has three loop setting adjustments which can be changed during installation:

• Blue Loop - default setting PAL, cut the loop for NTSC
• Green Loop - default setting PARKING LINES, cut the loop to remove PARKING LINES
• White Loop - default setting MIRROR IMAGE, cut the loop for FORWARD FACING IMAGE

The G35CL is compatible with any PAL or NTSC display with RCA connection and it comes supplied with a 18.5mm holesaw for installation, 1.5-metre power wire and a 6-metre video RCA.

Features:

• Front, rear or reverse camera
• Universal flush mount design
• 100 Degree horizontal lens angle
• CMOS Image sensor
• Optional parking guidelines (to be set during installation)
• Mirror image switchable (to be set during installation)
• PAL / NTSC image switchable (to be set during installation)
• 12V DC Compatible
• IP67 Weatherproof

• MOUNT TYPE: FLUSH MOUNT
• CAMERA TYPE: FRONT, REAR OR REVERSE
• LENS ANGLE: 100 DEGREE
• IMAGE SENSOR (CMOS or CCD): CMOS
• PARKING GRID-LINES: OPTIONAL (LOOP SEETTING ADJUSTMENT)
• PAL OR NTSC: SWITCHABLE (LOOP SETTING ADJUSTMENT)
• MIRROR IMAGE: SWITCHABLE (LOOP SETTING ADJUSTMENT)
• IP RATING: IP67
• VOLTAGE: 12V DC
• PLUG TYPE CAMERA END: 4 PIN MICRO DIN PLUG
• PLUG TYPE MONITOR END: RCA
• LENGTH OF VIDEO CABLE: 6M
• DIMENSIONS (CAMERA ONLY): 18MM DIAMETER
• INCLUSIONS:
  • FLUSH MOUNT CAMERA
  • 18.5MM DRILL BIT HOLESAW
  • 6M RCA LEAD WITH TRIGGER
  • CAMERA HARNESS
  • PRODUCT MANUAL
