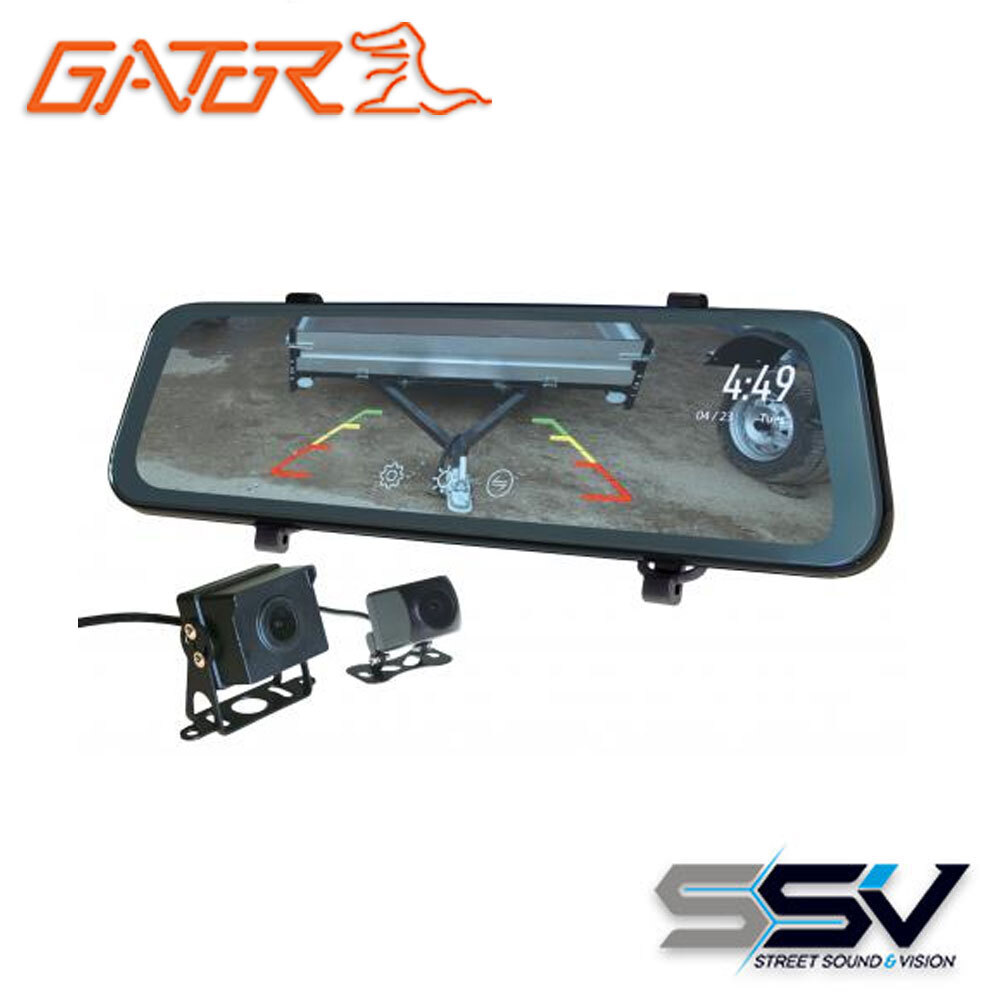

Gator GRV92MKT 9" Touch Screen HD Mirror Display 1080P Full HD Dual Camera Kit

The GRV92MKT features a large 9” high definition touch screen display that simply clips over the existing rear view mirror in the vehicle. The mirror has dual camera inputs and comes supplied with two 1080P full HD cameras. One camera comes with a 5.4M video extension cable, while the other camera comes with 2 x 10m video extension cables. Both cameras can be displayed on the mirror while driving and to change between cameras you can simply slide your fingers across the display. The heavy duty camera also has a reverse trigger cable, when connected to the vehicle it will display parking gridlines while in reverse. The kit includes an accessory plug power cable for easy installation and only a small amount of wiring is required to active the reverse camera feature.

Note:

• If you are planning to install the heavy duty camera in this kit on a trailer or caravan, we recommend using the Gator GTK1 4 PIN PROLINK Trailer Connection Kit (sold separately).

Features:

• 9" Touch Screen HD Display, for streaming and reversing
• Dual Camera Inputs, includes 2 cameras that can be mounted virtually anywhere on the vehicle or even on a trailer
• 1080P Full HD Resolution, produces clear footage from both cameras to capture critical details
• Wide Angle Lens, 140° & 110° camera angles minimise blind spots around the vehicle
• Both cameras can be used as either front or rear view as the image can be flipped on the display
• Streaming Mode, view the rear camera at any time or a clear unobstructed view
• Reversing Mode, the heavy duty camera switches to reverse mode when reverse gear is engaged
• Surface Mount Cameras, designed to mount in various locations at the front or rear of the vehicle
• Parking Guidelines, display on the heavy duty camera when the reverse trigger cable is connected and reverse gear is engaged
• Clip-On Mirror Mount, installs easily on the rear-view mirror in virtually any vehicle
• 5.4M Camera Cable, for the small surface mount camera enabling installation at the front or rear of the vehicle
• 2 x 10M Camera Cables, for the heavy duty surface mount camera enabling installation anywhere on the vehicle or on a trailer
• Wired System, eliminates interference between the monitor and cameras for clear vision
• Optional Gator GTK1 recommended to be used when installing the heavy duty camera on a trailer or caravan (sold separately)
• The Heavy Duty Camera is compatible with the GATOR Prolink Extension cables, the lead can be extended to a total distance of 40M between the Monitor and Camera

Specs:

MONITOR SPECIFICATIONS

• Monitor Size: 9.35"
• Mounting Type: Clip on Rear View Mirror
• Input Voltage: 5V (12/24V Accessory Power Adapter Included)
• Video Inputs: 2
• Video Connection Type: 3.5mm Jack
• Dimensions: 72mm(H) X 260mm(W) X 18mm(D)

SMALL REAR CAMERA SPECIFICATIONS

• Mount Type: Surface Mount
• Camera Resolution: 1080P
• Camera Angle: 140 Degree
• Image Sensor (CMOS or CCD): CMOS
• Parking Gridlines: NO
• IP Rating: IP67
• Video Cable Length: 5.4M
• Reverse Trigger on Video Cable: NO
• Dimensions (Camera Only): 22mm(H) x 22mm(W) x 30mm(L)

LARGE REAR CAMERA SPECIFICATIONS

• Mount Type: Surface Mount
• Camera Resolution: 1080P
• Camera Angle: 110 Degree
• Image Sensor (CMOS or CCD): CMOS
• Parking Gridlines: YES
• IP Rating: IP67
• Video Cable Length: 20M (2 x 10M 4 PIN Prolink Cables)
• Reverse Trigger on Video Cable: YES
• Dimensions (Camera Only): 35mm(H) x 41mm(W) x 35mm(L)

KIT SPECIFICATIONS

• Wired or Wireless: Wired
• Inclusions:
  • Mirror Monitor
  • 2 Cameras
  • 5.4M Video Cable
  • 2 X 10M Vide Cables (4 PIN PROLINK)
  • 12V/24V Charging Adapter
  • Mounting Screws
  • 3M Adhesive For Butterfly Camera
  • Mirror Protecting Pads
  • Rubber Mounting Clips
