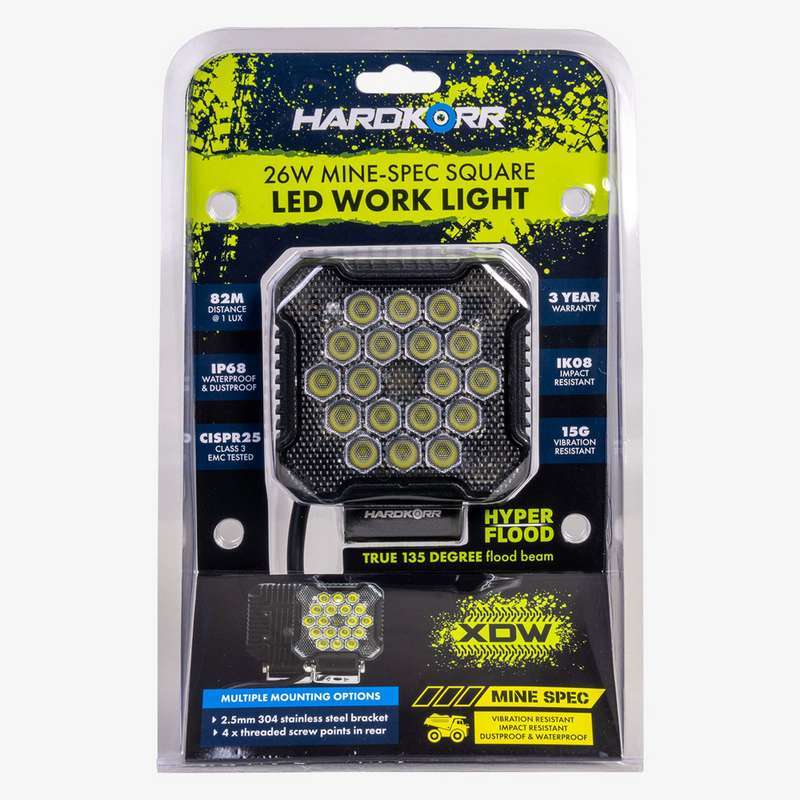

Hardkorr 26W Mine-Spec Square LED Work Light HKXDW26MS

SKU:HKXDW26MS

$69.00



In Stock


Calculate Shipping

When failure is not an option, this is the only work light you need. It's been designed from the ground up to take a hell of a beating, and it's got all the certifications to prove it.

Worried about vibration? Not a problem for this light: it's been tested to ensure it can survive 15G (R.M.S.) of vibration @ 24-2000Hz, meaning it will have no trouble with corrugations, bumps, holes, rocks or engine vibration.

What about impact? Again, not an issue. They've been certified to IK08 standard, which means they can handle a severe impact without missing a beat.

Add to this the outstanding optoelectronic engineering that sees it produce a 135 degree flood beam and a forward distance of 1 lux at 82m, plus full compliance with all international standards, and you've got yourself a light without equal.

Genuine parts, precision optics.

Hardkorr's HKXDW26MS work lights are made using genuine top-grade OSRAM® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.

This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world's most trusted manufacturer of LED lighting.

We don't use the "mine-spec" designation lightly when talking about these lights. We've engineered them to be incredibly durable, and extensively tested them to ensure they will perform under extreme duress in the real world. They are certified as compliant with the following standards:

  • IK08: Can survive up to a 5 joule impact from any direction without failing
  • IEC 60068-2-6 and ISO16750-1: Can survive constant exposure to 15G (R.M.S.) of vibration in the 24-2000Hz range
  • IP68 & IP69K: Completely resistant to dust ingress, can handle submersion in 3m of water for 30 minutes and high-temperature water jets at 8-10MPa pressure for 2 minutes
  • CISPR25 Class 3: Will not unduly interfere with radio signals
  • IEC 60068-2-14: Resistant to thermal shock - test parameters were 85°C max / -40°C min, 30 min per cycle, 40 cycles total

In addition, our manufacturing facility has been certified in accordance with the following international standards:

  • ISO 9001: Ensures quality management systems have been implemented
  • ISO 14001: Ensures environmental management systems have been implemented

Specifications

MaterialsADC12 cast aluminium housing
Pressure-formed polycarbonate lens
LED type18 x 1.44W OSRAM®
Output3,200 raw lumens
Distance1 lux @ 82m
Beam typeHyperflood„¢
Ingress protectionIP68 / IP69K
Impact ratingIK08 (5J)
Vibration ratingIEC 60068-2-6 & ISO16750-1
(15G R.M.S. @ 24-2000Hz)
EMC ratingCISPR 25 Class 3
Thermal shock ratingIEC 60068-2-14
(-40°C/85°C, 30 min, 40 cycles)
Working voltage10-32V DC
Current draw1.7A @ 13.4V / 0.85A @ 24V
Colour temperature6000K
Dimensions102mm (w) x 116mm (h) x 40mm (d)
Weight0.6kg
LED Lifespan50,000+ hours
CertificationsCE, RoHS, EMC

Pack Contents

1x 26W mine-spec square LED work light with Deutsch lead
1x Deutsch to DC adaptor
1x 304 stainless steel bracket and fittings

(HKXDW26MS)
