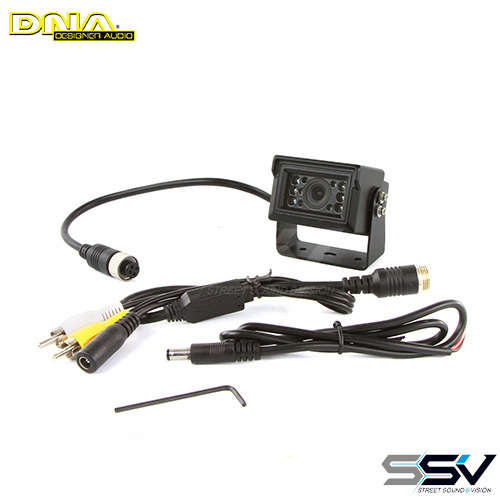

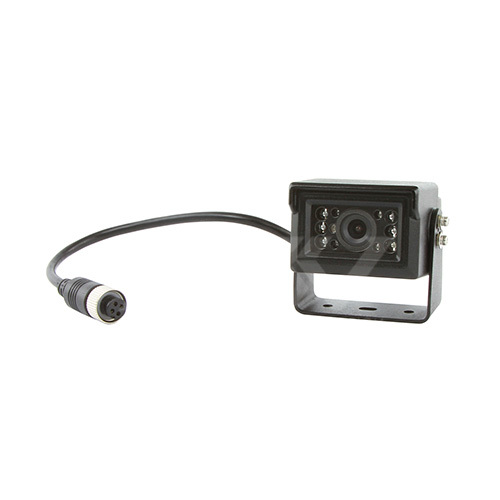

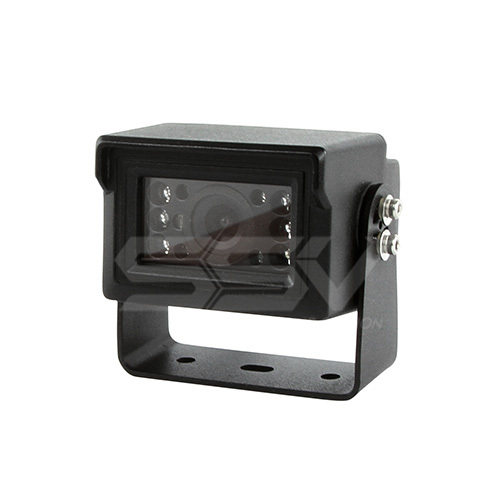

DNA RV103P Heavy Duty Compact CCD Camera - PAL

Heavy Duty Compact CCD Camera - PAL

This all metal waterproof construction CCD camera is ideal for trucks or buses where heavy duty application is required.
Designed with a compact footprint casing, and operates on 12V or 24V vehicles and includes built in IR LEDs for excellent night visibility and microphone for extra safety.

1/3 Inch Sharp PAL CCD Image processor
120° Horizontal Viewing angle
Horizontal Resolution: 600TV Line
IR LEDS: 10 IR Led
0.05 LUX illumination (night mode)
Operating Voltage: 12V or 24V DC
Sun Visor Built Into Casing
Microphone Included
Material: Aluminium alloy shell
S/N ratio: >48db
Waterproof rating to IP69K
Video output: 1Vp-p 75 ohm composite
Supplied with 0.6m 4pin water resistant lockable connector
Dimensions (Camera Only): 55mm W x 40mm H x 49mm D
Dimensions (Camera & Bracket): 68mm W x 57mm H x 49mm D
Packaging: Box
