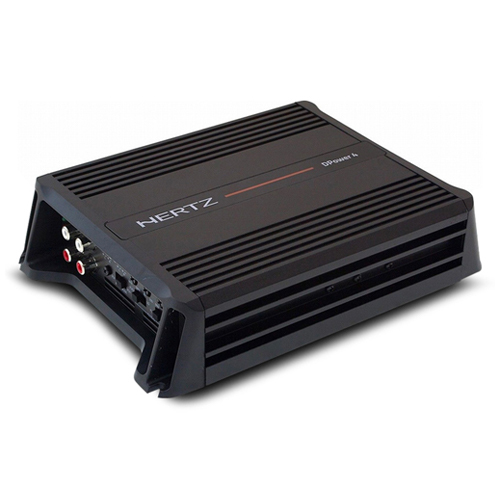

Hertz DPower4 600W 4CH D Class Amplifier

Description

Excellent for OEM systems upgrade, the Hertz DPower4 four channels car audio amplifiers is ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The versatile crossover filter of the DPower 4 enables the user to create a front-rear or front + subwoofer system by connecting two channels in bridge mode.

The double SPEAKER & RCA INPUTS allows the DPower4 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems the DPower4 is equipped with a smart automated turn on and off circuit according to the factory radio.

Channel mode	4 - 3 - 2
Output Power (RMS) @ 14.4 VDC	4 Ch 60 W x 4 (4Ω) 4 Ch 75 W x 4 (2Ω) 2 Ch 150 W x 2 (4Ω) 3 Ch 60 W x 2 + 150 W x 1 (4Ω) 3 Ch 75 W x 2 + 150 W x 1 (2Ω)
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic	Yes 40 ÷ 220 Hz @ 12 dB/Oct. 40 ÷ 220 Hz @ 12 dB/Oct. Not available Not available
Distortion - THD (100Hz @ 4Ω)	0.2 %
S/N Ratio (A weighted @ 1V)	95 dB
Damping factor (100Hz @ 4Ω)	60
Size W x D x H mm (in.)	222,2 x 160 x 50,5 / 8,75 x 6,3 x 1,99
