Hertz HCP5MD Marine 1500W 5CH Marine Amplifier

Hertz HCP5MD Marine 1500W 5CH Marine Amplifier

SKU:HCP5MD

In Stock
Add To Compare

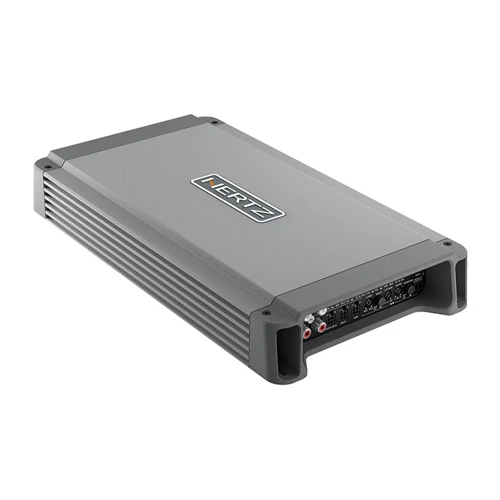

HCP 5MD marine amplifier features a compact design ready to face the open water environment, providing tons of clean power. The heat sink has been crafted from extruded aluminum, a material unmatched for lightness, robustness, and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built-up heat is then directed to the special dissipation “wings” along the side of the amplifier.

Channel mode 5 - 3
Output Power (RMS)
@ 14.4 VDC		 5 Ch: 65 W x 4 + 200 W x 1 (4 ?)
5 Ch: 105 W x 4 + 330 W x 1 (2 ?)
3 Ch: 210 W x 2 (4 ?) + 200 W x 1 (4 ?)
3 Ch: 210 W x 2 (4 ?) + 330 W x 1 (2 ?)



Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic
Front CH; Rear CH
FRONT/REAR Ch: 50 / 5k Hz @ 12 dB/Oct.
SUB Ch: 50 / 500 Hz @ 24 dB/Oct.
REAR Ch: 50 / 500 Hz (Hi) @ 12 dB/Oct. - 50 / 5 kHz (Lo) @ 12 dB/Oct.
on/off: 25 Hz @ 24 dB/Oct.
Distortion - THD
(100Hz @ 4?)		 0.02 %
S/N Ratio
(A weighted @ 1V)		 100 dB
Damping factor
(100Hz @ 4?)		 100
Size W x D x H
mm (in.)		 345 x 190 x 50 / 13.58 x 7.48 x 1.97

(HCP5MD)
