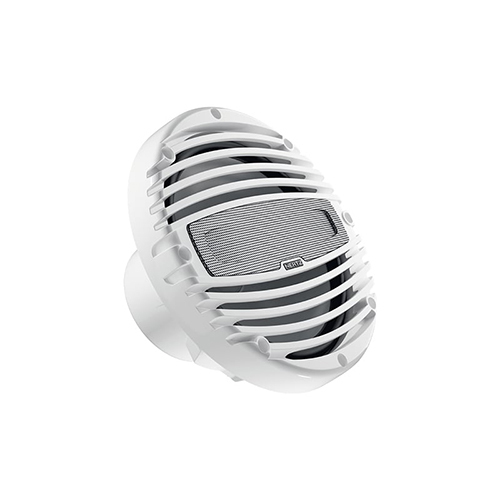

The HMX 8 LD hi-performance marinet coaxial speakers with RGB LEDs lighting option, also available in the black option HMX 8-LD-C, is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The HMX tweeters feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The attractive stainless steel tweeter mesh grille provides perfect high-frequency transfer and a rock-solid protection. The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Data table
Power Handling - Peak W | 200 |
Power Handling - Continuous W | 100 |
Impedance ? | 4 |
Frequency response Hz | 45 / 25k |
Sensitivity dB SPL | 91 |
Woofer size mm (in.) | 200 (8) |
Tweeter size mm (in.) | 36 (1.4) |
Woofer Voice Coil mm (in.) | 32 (1.26) |
Tweeter voice coil mm (in.) | 20 (0.8) |
Woofer magnet | High density flux ferrite |
Tweeter magnet | Neodymium |
Woofer cone | Polypropylene with UV inhibitors |
Tweeter dome | PEI |
- Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
- Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
- 1.4 Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
- Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
- Long-throw 32 mm (1.26) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
- Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
- FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
- Sealed built-in crossover with resettable solid-state tweeter protection circuit .
- Gold-plated corrosion resistant terminals.
(HMX8LDC)
