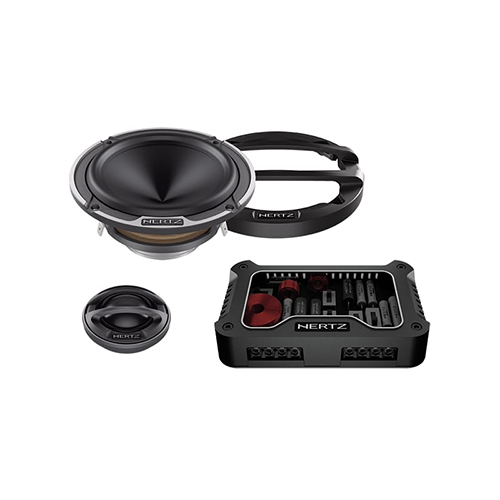

The MLK 700.3 Legend car audio speakers system aims at offering a mid-high frequency range of excellence, to combine with a Legend woofer with a choice between ML 1650.3 and ML 1800.3 actively filtered in a multi-amplified configuration. MLK 700.3 Legend is composed of the ML 700.3 Legend Extended Midrange, the ML 280.3 Legend tweeter and the MLCX 2 TM.3 dedicated crossover that features the unique Mid-Countour control with its three-position selector, acting on the mid frequencies of the ML 700.3 Legend midrange by varying the cross-point with the tweeter to obtain the desired sound. The V-cone exponential profile without the traditional dustcap gets close to the perfect one, generating exceptional dispersion: thanks to the synergistic action of these technological elements, ML700.3 Legend boasts outstanding high frequency extension making it possible to build purist two-way systems in combination with ML 1650.3 Legend or ML 1800.3 Legend. Thanks to this configuration, where there is only one cross-point, phase rotations are limited to the minimum, ensuring excellent soundstage and disarming timbre consistency. With the mid-high frequencies being handled by the ML700.3 Legend and the low ones by the ML1800.3 Legend, the whole audio range is reproduced with transducers built with the same materials and based on the same electro-acoustic structure; that doesn"t happen with woofer and tweeter, since due to its own nature the tweeter is different in materials and structure. The uniformity in materials and structures creates very high timbre consistency, so the speakers can "disappear" and leave room to emotions.
Data table
Power Handling - Peak W | 200 |
Power Handling - Continuous W | 100 |
Impedance ? | 4 |
Frequency response Hz | 200 / 28k |
Sensitivity dB SPL | Midrange 90 Tweeter 92 |
Voice coil mm (in.) | Midrange 20 (0.8) Tweeter 28 (1.1) |
Woofer size mm (in.) | 70 (3) |
Tweeter size mm (in.) | 35 (1.38) |
Woofer magnet | Neodymium |
Tweeter magnet | Neodymium |
Woofer cone | Pressed-pulp cone with cotton fibres |
Tweeter dome | Tetolon |
Crossover type | 2 Way Passive Crossover |
Crossover cut off | 4.5 kHz - 6/12 dB Oct. |
(MLK700.3)
