Thanks to the V-cone and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response, even in cars with no space for a subwoofer.
Data table
Size mm (in.) | 165 (6.5) |
Power Handling - Peak W | 180 |
Power Handling - Continuous W | 90 |
Impedance ? | 4 |
Frequency response Hz | 40 / 5k |
Sensitivity dB SPL | 93 |
Voice coil mm (in.) | 25 (1) |
Magnet | High density flux ferrite |
Cone/Dome | Pressed-pulp cone with cotton fibers |
1.PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
2.EXPONENTIAL V-CONE PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
3.BOUNDARY FREE RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
4.HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
5.BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.

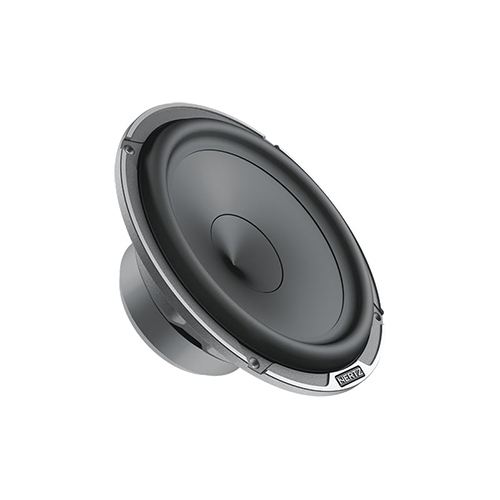

(MP165.3)
