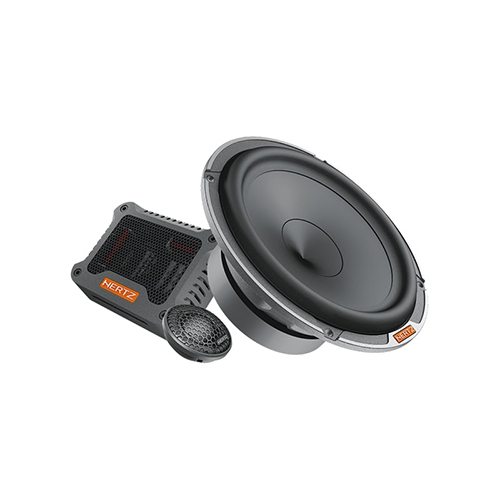

The MPK 1650.3 car audio speakers system is the top of the range two way system of the Mille PRO line. The system uses the 28 mm diameter MP 280.3 tweeter inheriting all the technological features of the Mille Legend ML28.3. The geometry of the Tetolon dome maximizes the typical dispersion of off-axis listening. The rear acoustic chamber with damping material contributes to extend response to lower frequencies achieving a resonance frequency of only 900 Hz. In this way the crossover point between tweeter and woofer can be lowered, improving the sound image in the car dashboard. The massive Neodymium motor minimizes nonlinearity managing the music program with very dynamic transients. The CCAW (Copper Clad Aluminium Wire) voice coil guarantees an especially light weight and stiff moving assembly. These technological elements interact with each other, resulting in a high frequency extension of 28 kHz, a record for a tweeter featuring a 28 mm voice coil. An elegant and compact angled tweeter support is provided with the system: this allows easy installation both on the A-pillars and on the car dashboard. The correct angle of the tweeter improves the stereo image, essential for an engaging listening.
Data table
Power Handling - Peak W | 250 |
Power Handling - Continuous W | 125 |
Impedance ? | 3 |
Frequency response Hz | 45 / 25k |
Sensitivity dB SPL | 93 |
Voice coil mm (in.) | 25 (1) |
Woofer size mm (in.) | 165 (6.5) |
Tweeter size mm (in.) | 35 (1.38) |
Woofer magnet | High density flux ferrite |
Tweeter magnet | Neodymium |
Woofer cone | Pressed-pulp cone with cotton fibers |
Tweeter dome | Tetolon |
Crossover type | 2 Way Passive Crossover |
Crossover cut off | 3 kHz (Hi-Cont. = ON) , 4 kHz (Hi-Cont. = OFF) |
(MPK16503)
