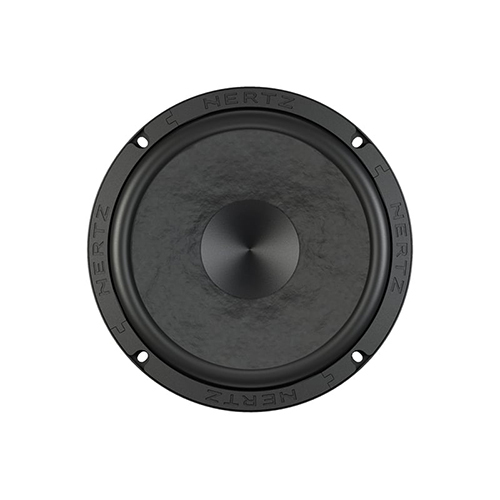

The Hertz SV 200L car audio woofers was designed to offer superior performance in terms of both thermal and mechanical capability. The target has been fully hit since the woofer features a pure copper voice coil wound on KSV former, an oversized magnet and a vented bottom plate. The SV 200L employs the proprietary V-cone technology with the cone constructed from pulp with cotton fibre as well as Lossless Polymer Rubber Surround, offering a powerful low frequency response as well as the best off-axis dispersion.
Data table
Size mm (in.) | 200 (8) |
Power Handling - Peak W | 500 |
Power Handling - Continuous W | 250 |
Impedance ? | 4 |
Frequency response Hz | 45 / 4,5k |
Sensitivity dB SPL | 94,5 |
Voice coil mm (in.) | 50 (2) |
Magnet | High density flux ferrite |
Cone/Dome | Ultra light, non pressed paper |
(SV200L)
