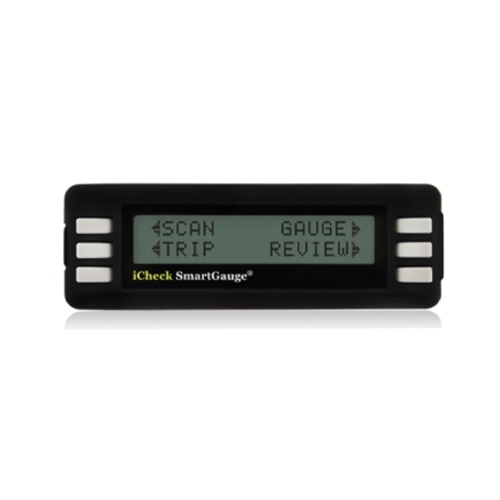

iCheck Smart Gauge 4 in 1 Vehicle Computer Diagnostic Tool

The iCheck Smart Gauge is packed with ultra smart features and is the must-have compact digital monitor for modern cars and 4WDs.

Monitor real time vehicle performance data and select from 15 built-in electronic gauges such as engine speed, battery voltage, vehicle speed or fuel system status. Watch four different gauges at once.

Troubleshoot problems on all OBD2/EOBD compliant vehicles. Read and clear trouble codes, determine the cause of the “Check Engine” light, display and reset monitors, retrieve vehicle info (VIN, CIN, CVN)

Review 300 hours of driving data to assess past trip information including time and date, distance travelled, maximum speed, time over speed, times of hard acceleration and average fuel consumption.

With a number of built-in trip computers keep track of average speed, driving time, fuel used, distance to empty, time to empty, engine power and maximum speed. Each trip starts the trip computer automatically.

4 in 1 Vehicle Computer featuring:

DIGITAL GAUGES

Measure and monitor up to four different sets of information simultaneously, providing real-time engine performance analysis, allowing you to adjust driving behaviour and save fuel.

TRIP COMPUTER

Display useful information such as trip km per litre (km/l), tank km/l, average speed per trip, average speed per tank, kilometres to empty & kilometres driven on a tank.

CAR BLACK BOX

Save up to 300 hours of your driving data. Works as a vehicle black box to store every trip.

SCAN TOOL

Works as a scan tool to help you troubleshoot problems of all OBD2/EOBD compliant vehicles.

EASY TO INSTALL!

NO TOOLS REQUIRED

iCheck SmartGauge installs in just minutes without tools and doesn’t require batteries or an external power source. All data and power comes from the single OBDII Connection.

COMPACT DESIGN

Unit dimensions 126mm x 41.6mm x 26.6mm

USER-FRIENDLY MENU

Simple 6 Button Operation

COLOUR BACKLIGHT DISPLAY

Select between two colours for a customised look.

The super-compact iCheck SmartGauge features 15 built-in digital gauges, multiple trip computers, up to 300 hours of past trip data and an easy-to-use engine trouble tool to clear codes.

The iCheck SmartGauge was developed for people who want an affordable real-time vehicle gauge with high end features that allow you to monitor and record trip information.

Designed by Australian industry professionals who have worked with and installed auto electrics for over 20 years.

DIGITAL GAUGES

Measure and monitor up to four different sets of information simultaneously, providing real-time engine performance analysis, allowing you to adjust driving behaviour and save fuel.

• Fuel system status

• Vehicle speed

• Engine coolant temperature

• Fuel rail pressure

• Intake manifold absolute pressure

• Engine speed

• Calculated load value

• Ignition timing

• Intake air temperature

• Absolute throttle position

• Battery voltage

• Short term fuel trim

• Oxygen sensor output voltage

• Air flow rate

• Commanded secondary air status

SCAN TOOL

Works as a scan tool to help you troubleshoot problems of all OBD2/EOBD compliant vehicles.

• Works with all OBDII compliant vehicles.

• Reads & clears trouble codes.

• Easily find the cause of ‘Check Engine Light (MIL)’.

• Turns off ‘Check Engine Light’, and resets monitors.

• Views freeze frame data.

• Displays monitor and I/M readiness status.

• Retrieves vehicle information (VIN, CIN and CVN).

CAR BLACK BOX

Save up to 300 hours of your driving data. Works as a vehicle black box to store every trip. Review past trips to monitor vehicle performance.

• Time and date for each trip

• Distance travelled each trip

• Maximum speed during trip

• Time over speed

• Times of extreme acceleration during trip

• Times of extreme deceleration during trip

• Times of hard accelerations and braking

• Average fuel consumption

TRIP COMPUTER

Display such useful information as average trip Kilometres per litre (km/l), tank km/l, average speed per trip, average speed per tank of fuel, kilometres to empty, kilometres driven on tank, and more.

• Maximum speed

• Average speed

• Driving time

• Driving distance

• Fuel used

• Trip fuel economy

• Distance to empty

• Time to empty

• Fuel to empty

• Engine power

Includes:

• iCheck SmartGauge Computer
• iCheck SmartGauge Cable (1.8m)
• USB Cable
• Sticker
• Velcro Mounting Strip
• Printed Guides & Manual
• iCheck is 100% Australian Owned & Operated and Includes a 3 Year Warranty.

Compatibility List

FORD

• Ford PJ / PK Ranger 3.0 L CRD (2007 onwards)
• Ford PX Ranger 3.2 L CRD (2012 onwards)

GREAT WALL
Great Wall X200 2.0L Diesel (2012 onwards)

HOLDEN

• Holden Colorado 3.5L Alloytech V6 Petrol (2009 onwards)
• Holden Colorado 7
• Holden Colorado RG 2.8L Diesel (2012 onwards)
• Holden Colorado 3.0L Diesel (2008 - on)
• Holden Frontera V6 Petrol
• Holden Jackaroo 3.5L V6 (1998 onwards)
• Holden Rodeo Diesel (2004 onwards)
• Holden Rodeo V6 Petrol (2001 onwards)

HYUNDAI

• Hyundai Terracan Diesel (2005 - 2007)
• Hyundai Terracan Petrol (2004)

ISUZU

• Isuzu D-Max 3.0L Diesel (2008 onwards)
• Isuzu VehiCross (AKA VX) 3.2L V6 Petrol (1997)

JEEP

• Jeep Cherokee 3.7L Petrol (2006 onwards)
• Jeep Commander 3.0L Diesel (2006 onwards)
• Jeep Grand Cherokee 3.0L V6 CRD (2007 onwards)
• Jeep Wrangler JK Diesel (2008 onwards)
• Jeep Wrangler TJ Petrol (2001)

LAND ROVER

• Land Rover Defender 2.2L Diesel - Ford Duratorq (2012 onwards)
• Land Rover Defender 2.4L Diesel (Puma / Transit) (2007 - 2011)
• Land Rover Discovery S2 4.0L V8 Petrol (1999 - 2005)
• Land Rover Discovery S3 2.7L TDV6 (2005 onwards)
• Land Rover Discovery S3 Petrol (2005)
• Land Rover Range Rover P38 V8 Petrol (1994)

LEXUS
Lexus LX470 4.7L Petrol V8 (2006)

MAHINDRA
Mahindra Pikup 2.2L Diesel (2012)

MAZDA

• Mazda BT-50 2.5L Diesel (2009)
• Mazda BT-50 3.0L Diesel (2007 onwards)
• Mazda BT-50 3.2L Diesel

MITSUBISHI

• Mitsubishi Challenger Diesel 2.5L CRD (2009 – on)
• Mitsubishi Pajero NS / NT Diesel (CRD) (2007 – on)
• Mitsubishi Pajero V6 3.8L (2004 – on)
• Mitsubishi Pajero V6 3.5L (2004)
• Mitsubishi Triton ML Diesel 3.2L CRD (2007 – on)
• Mitsubishi Triton ML V6 (2007 – on)
• Mitsubishi Triton MN Diesel 2.5L CRD (2009 – on)

NISSAN

• Nissan Navara D22 CRD (2008 onwards)
• Nissan Navara D40 CRD (2006 onwards)
• Nissan Navara D40 V6 Petrol (2006 onwards)
• Nissan Pathfinder R51 CRD (2005 onwards)
• Nissan Pathfinder R51 V6 Petrol
• Nissan Patrol Y61 3.0L Common Rail Diesel (2007 onwards)

SSANGYONG
Ssangyong Actyon (2012 - On)

TOYOTA

• Toyota FJ Cruiser – Australian model (2011 – on)
• Toyota Hilux D4D (MY 2007) (Aug 2006 – on)
• Toyota Hilux 2.7L VVTi Petrol (2009 – on)
• Toyota Hilux V6 Petrol (Aug 2006 – on)
• Toyota Landcruiser 76 Series V8 Diesel (2007 – on)
• Toyota Landcruiser 78 Series V8 Diesel (2007 – on)
• Toyota Landcruiser 79 Series V8 Diesel (2007 – on)
• Toyota Landcruiser 100 Series V8 Petrol (2003 – on)
• Toyota Landcruiser Prado 120 Series V6 Petrol (5 sp auto & 6 sp manual ~Aug 2004 – on)
• Toyota Landcruiser Prado 120 Series D4D (5 sp auto & 6 sp manual ~Nov 2006 – on)
• Toyota Landcruiser Prado 150 Series Petrol & Diesel
• Toyota Landcruiser 200 Series V8 Diesel (2007 – on)
• Toyota Landcruiser 200 Series V8 Petrol (2008 – on)

VOLKSWAGEN
Volkswagen Amarok

OTHER (2WD / AWD)

• Alfa Romeo Spider JTS (2005 onwards)
• BMW 316i (1999 onwards)
• BMW X5 3.0L Diesel (2005 onwards)
• Citroen Dispatch 2.0L Diesel (2008 onwards)
• Fiat Scudo 2.0L Diesel (2008 onwards)
• Ford Falcon XR8 (2005 onwards)
• Ford Fiesta (2007 onwards)
• Ford Ka (2000 onwards)
• Ford Territory Petrol (2006 onwards)
• Holden Astra 1.8L Petrol (2002 onwards)
• Holden Barina SRi 1.8L Petrol (2004 onwards)
• Holden Commodore VE V6 (2010)
• Holden Commodore VT Series 2 5.7L V8 (1999).
• Holden Statesman WH V8 (2000 - 2002).
• Holden Crewman 3.6L V6 (2007)
• Holden Crewman 5.7L V8
• Holden Vectra (2005)
• Honda Civic (2000)
• Honda CRV Petrol (2003 onwards)
• Honda MDX 3.5L Petrol (2003 onwards)
• Hyundai Elantra 2.0L Petrol (2009 onwards)
• Hyundai Getz 1.5L Petrol (2004 onwards)
• Hyundai i30 Diesel Manual Transmission (2008 onwards)
• Hyundai i30 Petrol (2007 onwards)
• Hyundai SantaFe Diesel Manual Transmission (2007)
• Hyundai SantaFe Diesel Automatic Transmission (2010 onwards)
• Hyundai SantaFe 3.3L V6 (2008 onwards)
• Hyundai SantaFe 2.4L Petrol (2012)
• Hyundai Sonata EF Petrol (2004 onwards)
• Hyundai Sonata NF Diesel (2009 onwards)
• Kia Rio Petrol (2007 onwards)
• Kia Rondo Petrol (2008 onwards)
• Kia Sorento Diesel (2007 onwards)
• Kia Sorento V6 Petrol (2003 onwards)
• Kia Sportage 2.7L V6 Petrol (2005 onwards)
• Lotus Elise Petrol (2006)
• Mazda 3 Petrol 2.0L (2007 onwards)
• Mazda 3 SP23 Petrol 2.3L (2005 onwards)
• Mazda 3 2.0L Diesel (2007 onwards)
• Mazda 6 Petrol 2.3L (2004 onwards)
• Mazda 6 MPS 2.3L Turbo Petrol (2005 onwards)
• Mazda RX-8
• Mazda MX-5 (2003)
• Mitsubishi Colt (2005)
• Mitsubishi Lancer VR-X (2005)
• Mitsubishi Lancer VR-X 2.4L (2010)
• Mitsubishi Outlander Petrol 2.4L (2006 – on)
• Nissan Tiida (2006 onwards)
• Nissan X-Trail Diesel (2008 onwards)
• Nissan X-Trail Petrol (2002 - 2003)
• Nissan X-Trail Petrol (2005 onwards)
• Subaru BRZ
• Toyota Aurion (2007 – on)
• Toyota Corolla (2006 – on)
• Toyota Echo (2003 – on)
• Toyota Hiace D4D (2009 – on)
• Toyota Kluger (late 2003 – on)
• Toyota Prius Gen II (2007 – on)
• Toyota Prius Gen III
• Toyota Rav4 4 cylinder (2006 – on)
• Toyota Rav4 ZR6 V6 (2008 – on)
• Toyota Yaris (2005 – on)
• Toyota 86
• Volkswagen Caddy - Maxi 1.9L Diesel (2009 onwards)
• Volkswagen Caravelle (2002)
• Volkswagen Polo 1.4L Petrol (2011 onwards)
• Volkswagen Polo 1.4L Diesel (2007 onwards)
• Volkswagen Transporter 2.5L Diesel (2002 onwards)
