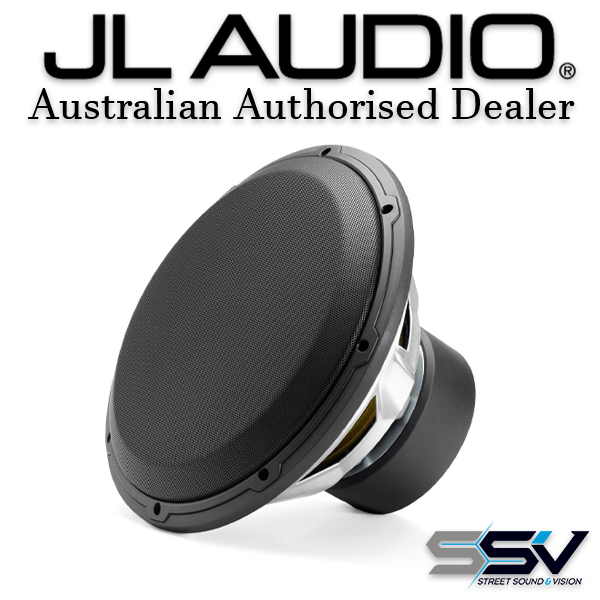

JL Audio 12W3v3-4 12-inch (300 mm) Subwoofer Driver 4 Ω

W3v3 12-inch Subwoofer (500 W, 4 Ω)

This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.

The 12W3v3-4 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.125 cu. ft. (31.8 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

General Features:

• 12" 2-ohm subwoofer
• mineral-filled polypropylene cone with nitrile-butylene rubber surround
• power range: 100-500 watts RMS
• peak power handling: 1,000 watts
• frequency response: 22-200 Hz
• sensitivity: 87.15 dB
• top-mount depth: 6-5/8"
• sealed box volume: 1.25 cubic feet
• ported box volume: 1.75 cubic feet
