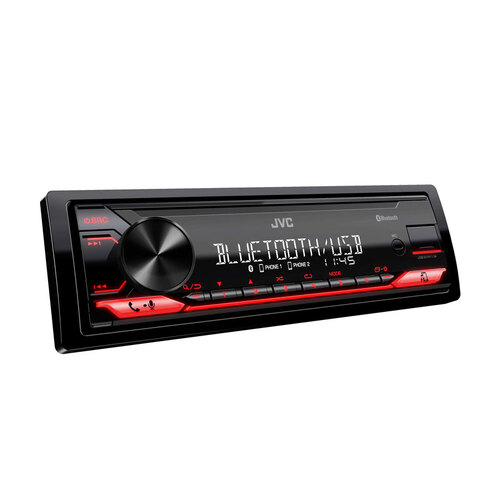

JVC KD-X182BT Digital Media Receiver featuring Bluetooth® / USB / 13-Band EQ / JVC Remote App Compatibility
SKU:KD-X182BT
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ.
Move to the groove and get the party pumping to the max.
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing.
Calls to either phone can be received by a push of a key on the receiver.
Bluetooth Hands-Free Profile 1.7
HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
Low Battery Information
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.
Display
Music Sync. Effect
Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like.
USB
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
SOUND OPTIMIZATION
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range.
For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively.
Sound Response
This function boosts the low frequencies which can be lost during compression to MP3.
Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
General
Remote Control App (Android)
Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.
*JVC Remote App
For more information, visit www.jvc.net/car/app/jvc_remote/
Short Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Technical Specifications
Manuals
Display
- Detachable Face Panel
- Yes
- Display Type
- VA LCD Display
- LCD Colour
- White
- Key Color
- Red
- Music Sync. Effect
- Yes
- Auto Dimmer
- Yes
- Spanish Text Compatible
- Yes
Radio Tuner
- Radio Data System (RDS)
- Yes
- FM Frequency Range
- 87.5 - 108.0MHz
- AM Frequency Range
- (MW) 531 - 1,602kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
- Preset Stations
- 18FM + 6AM + 12SW
- Tuner Preset Back-up Memory
- Yes
- Auto Antenna
- Yes
- Automatic Preset / SSM (FM only)
- Yes
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
USB
- Location
- Front
- Drive Change Mode for Mass Storage Class
- Yes
- 1.5A Max. Power Supply Current
- Yes
Bluetooth®
- Built-In Bluetooth
- Yes (Ver 4.2)
- Voice Dialing
- Yes
- Remote Control Application
- Yes
- Hands Free Call (HFP)
- Yes (HFP 1.7.1)
- Advanced Audio Distribution Profile (A2DP)
- Yes
- Audio/Video Remote Control Profile (AVRCP)
- Yes (AVRCP 1.6.1)
- Phone Book Access Profile (PBAP)
- Yes
- Serial Port Profile (SPP)
- Yes
- 2 Phones Full-Time Connection
- Yes
- Audio Codec
- SBC
- JVC Streaming DJ
- with up to 5 Bluetooth devices
- Noise Canceller
- Yes
- Echo Canceller
- Yes
- Built-in BT Microphone
- Yes
- Low Battery Information
- Yes
Android Control
- Android Music Playback
- Yes (via Bluetooth(R))
Audio
- Maximum Power Output (Front & Rear)
- 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD)
- 22W x 4
- K2 Technology
- Yes
- 13-Band Graphic EQ
- Yes
- Preset EQ
- Yes (11-Preset)
- Volume Link EQ
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Time Alignment
- Yes
- Space Enhancement
- Yes
- Sound Response
- Yes
- Sound Lift
- Yes
- Loudness Control
- Yes
- Bass Boost (Hyper Bass System)
- Yes
Inputs and Outputs
- Auxiliary (AUX) Input
- 1 (Front)
- Pre-Out Terminals
- 1 Pair (Rear/Subwoofer Selectable)
- Pre-Output Level
- 2.5V
- Subwoofer Output with Level/Frequency Control
- Yes (Level -50 - +10)
- Subwoofer Output Level
- 2.5V
- Subwoofer Direct Connection (Mono Lch)
- Yes
General
- Back Up Memory
- Yes
- Wireless Remote Control
- Ready
- Wired Steering Remote Control Ready
- Yes
- Short Chassis
- Yes
- Installation Size (W x H x D)
- 182 x 53 x 100mm
- Weight
- 0.6kg
- Unit weight in individual package
- 0.8kg
(KD-X182BT)
