JVC KW-M180BT Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor

Monitor with Receiver KW-M180BT

Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor / USB Mirroring for Android™ / Bluetooth® / 13-Band EQ / Short Chassis / Fast Bootup

Smartphone Integration

USB Mirroring for Android™

Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.

How to USE

Step-1 : Simply download the free Mirroring for JVC app.

Step-2 : Connect your smartphone via Bluetooth and USB.

Mirroring OB for JVC App
For more information, visit here.

Bluetooth^® Wireless Technology

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.6 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.5 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Sound Optimization

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

General

Fast Bootup

Thanks to the new fast bootup feature, the Receiver is ready to use shortly after powering on.

Capacitive Touchscreen

Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

Various Formats Compatible

Supports a variety of file formats for audio and video playback.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

• Waterproof design
• 1/4" color CMOS sensor with effective 380,000 pixels
• Flexible mounting bracket included
• Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
• Weight: 21g (Camera only)

Direct OEM Steering Remote Function

No need for a third party adapter for most Japanese/Korean cars. Click here for details.

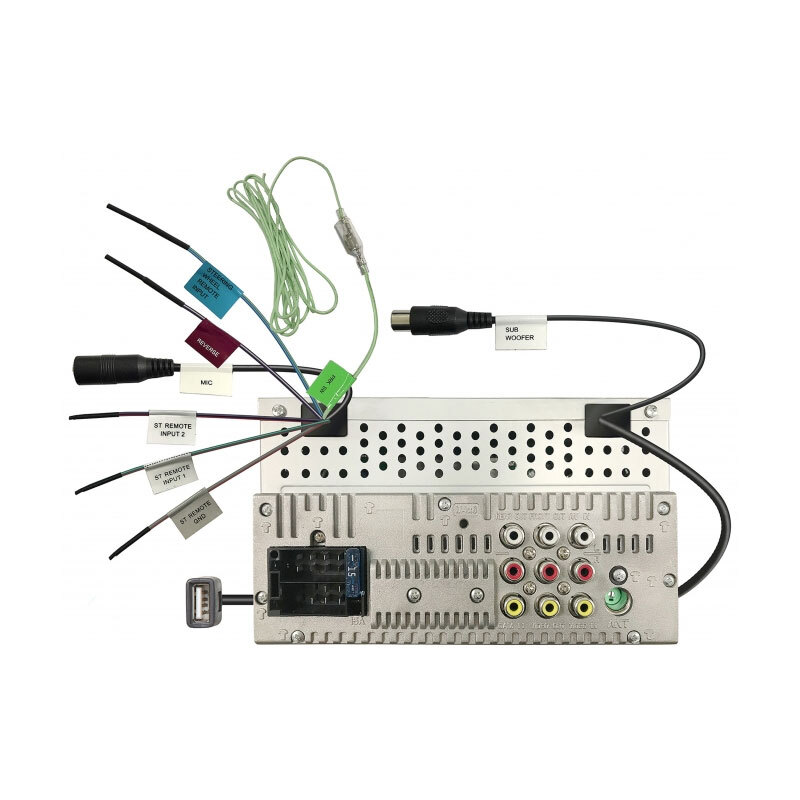

Description of Rear Terminals

• Technical Specifications
• Product Support

KW-M180BT

Monitor

Screen Size

6.8"Wide VGA

Touch Panel

Capacitive

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[2]

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

H.264 Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

MKV Compatible

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Wired-Mic included)

Hands Free Call

Yes (HFP1.6 Wideband Speech)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Android Control

Mirroring for Android

Yes (via USB)

Android Music Playback

Yes (via Bluetooth(R))

iPod/iPhone Control

iPhone Music Playback

Yes (via USB or Bluetooth(R))

USB

USB Port

x 1 (High speed)

Position

Rear

USB Power Supply

Yes (1.5A)

Radio Tuner

Radio Data System

Yes

Preset Stations

30 (6ch x 5band)

FM

Frequency Range

87.5-108.0MHz

AM

Frequency Response

531-1,611kHz

Audio

Maximum Power Output (Front & Rear)

45W x 4

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (7Preset + 3user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

Time Alignment

Yes

Inputs and Outputs

AV Input

RCA x 1

Video Out

RCA x 1

Rear view camera Input

Yes

Line Output Terminals

3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)

Pre-output Level/Impedance

2V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

General

Face Type

Fixed

Short Chassis

Yes (75mm)

Wireless Remote Control Type

Ready (RM-RK258 required)

Steering Remote Control Ready

Yes

Learning Direct OEM Remote

Yes

ISO Connector

Yes
