JVC KW-M590BT Picture(9) Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay® / Android Auto™ / USB Mirroring / Bluetooth

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay® / Android Auto™ / USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis

SMARTPHONE INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

Apple CarPlay® – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

USB Mirroring

By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and mobile phone.

*Selected mobile phones only

SOUND OPTIMIZATION

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Bluetooth^® Wireless Technology

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.8 Wideband Speech

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.6 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

General

6.8" WSVGA LCD Display

The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

Gesture Touch Control

Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.

High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.

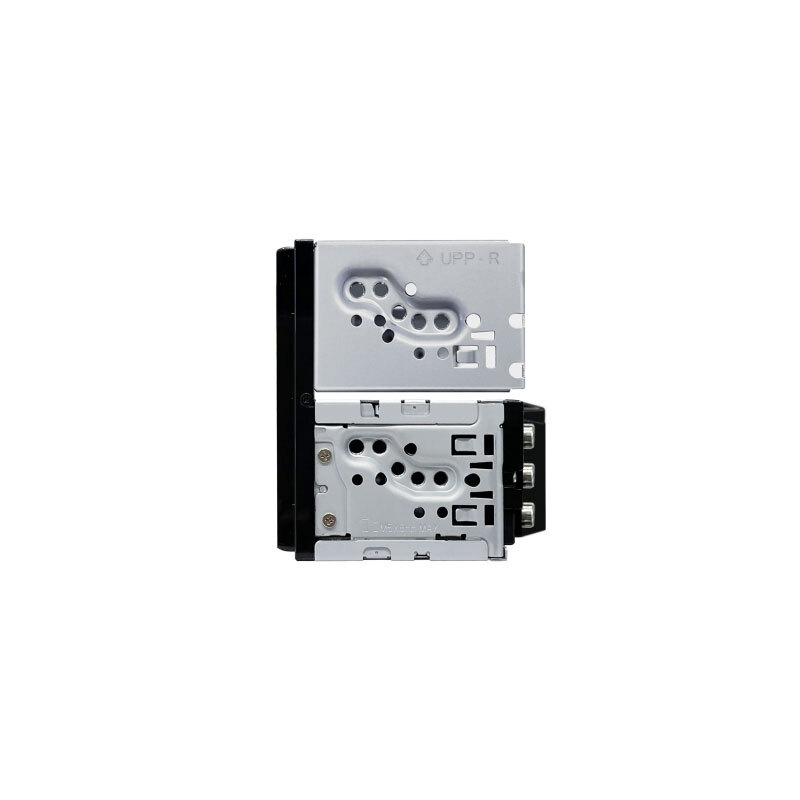

Short Chassis

Despite a double-DIN display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Remote Control (Optional)

Remote control (RM-RK259) is optionally available.

• Technical Specifications
• Product Support

KW-M590BT

Monitor

Screen Size

6.8"W SVGA

Touch Panel

Capacitive

Customizable GUI

Yes

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[4]

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

H.264 Compatible

USB

WMV Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

MKV Compatible

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Hands-Free MIC Built-in)

Hands Free Call

Yes (HFP1.8 Wideband Speech)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Auto Pairing for iPhone/Android

Yes

Android Control

Android Auto[2]

Yes (via USB)

Mirroring for Android

Yes (via USB) *Need mirroring App

Android Music Playback

Yes (via Bluetooth®)

iPod/iPhone Control

CarPlay[3]

Yes (via USB)

Mirroring for iPhone

Yes (via USB) *Need mirroring App

iPhone Music Playback

Yes (via USB or Bluetooth®)

USB

USB Port

x 1 (High Speed)

Position

Rear

USB Power Supply

Yes (2.1A High Current Charging)

Radio Tuner

Radio Broadcast Data System (RBDS)

Yes

Preset Stations

36(FM:24ch, AM:12ch)

Auto Memory Entry

Yes

FM

Frequency Range

87.9 - 107.9MHz

AM

Frequency Range

530-1,700kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (7Preset + 3user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

Speaker Size Control

Yes

Inputs and Outputs

Video Out

x 1 (V:RCA)

Rear view camera Input

Yes

Line Output Terminals

2Preouts + Sub WF (Mono)

Pre-output Level/Impedance

2.5V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes (Normal / Reverse)

General

Back Up Memory

Yes

Short Chassis

Yes

Wireless Remote Control

Optional (RM-RK259 required)

Steering Remote Control Ready

Yes
